Compatible with: for charging 12V100AV / 12V140AV / 12V190AV li-ion batteries
Weight: 3.0 kg
Safety of use: no risk of overcharging, protected against reverse polarity
Quick charging: full charging within 3-4 hours (12V100 AV), 5-6 hours (12V140 AV), 7-8 hours (12V190 AV)MAIN FEATURES
COMPACT & LIGHTWEIGHT: the charger weighs just 3.0 kg.- HIGH EASE OF USE: lightweight and compact, quick recharge
HIGH EASE OF USE: lightweight and compact, quick recharge- RELIABLE: built-in protection: no risk for overcharging. Charger switches off automatically when the battery is fully charged. Protected against reverse polarity.
- WARRANTY: 2 years.
RELIABLE: built-in protection: no risk for overcharging. Charger switches off automatically when the battery is fully charged. Protected against reverse polarity.
WARRANTY: 2 years.IMPORTANT INFO
PLEASE REVIEW THE BELOW INFORMATION BEFORE COMPLETING YOUR ORDER

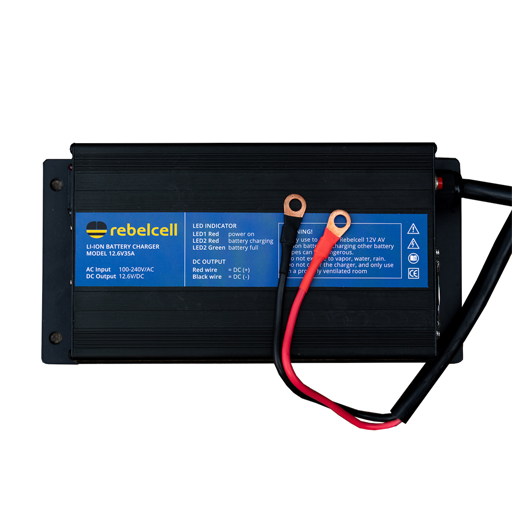

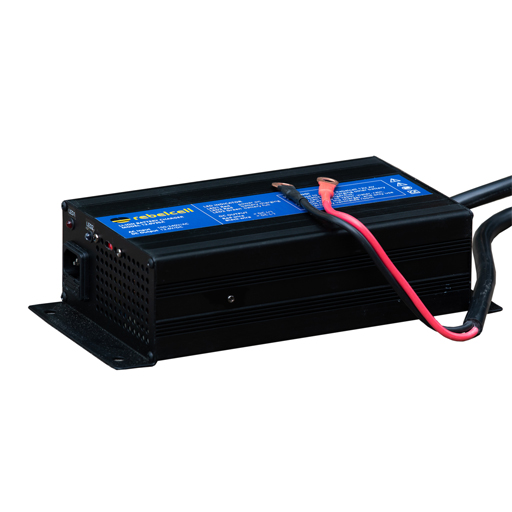

The Rebelcell 12.6V35A li-ion charger is only intended for use with the 12V100 / 12V140 / 12V190 AV li-ion battery. Read the safety warnings and instructions on the sticker on the charger before use.
DETAILS & SPECIFICATION
TECHNICAL SPECIFICATIONS
Technology | Automatic charger with advanced high frequency switch mode power supply technology |
Efficiency | >85% |
Size (in mm) | 260 × 135 × 70 |
Weight | 3.0 kg |
Weight package | 3.5 kg |
AC input | 230 Volt 50-60Hz |
Power | 450 W |
Charging voltage | 12.6V |
Maximum charge current | 35A |
Charging profile | Pre-charge/CC/CV/Cut-off |
Connector | M8 tongue connector |
Charge status indicator | Yes, via LED |
Minimal battery voltage | 3V |
Works at temperature | 0°C tot +40°C |
COMPATIBLE WITH | CHARGING TIME |
12V100 AV battery | 3-4 h. |
12V140 AV battery | 5-6 h. |
12V190 AV battery | 7-8 h. |
ELECTRONICS AND CHARGING INDICATOR
LED 1 | Red: charging |
LED 2 | Red (charging on) and green (fully charged) |
Over charge protection | Yes, ‘auto power off’ when charge process is completed |
Reverse polarity protection | Yes |
Short circuit protection | Yes |
Overvoltage protection | Yes |
High temperature protection | Yes |
Cooling | Yes, forced ventilation with fan to cool charger |
Heat sink | Yes, the outside case of the charger functions as heat sink |
CERTIFICATION AND WARRANTY
Warranty | Two years |
Certification | CE |
Standards (IEC 529) | 60950 |
EAN | 7106623690789 |
Product code | LC12V35REAV |
HS code | 85044030 |
