Compatible with: 24V50 / 24V70 / 24V100 batteries
Weight: 1.5 kg
Safety of use: no risk of overcharging, protected against reverse polarity
Quick charging: full charging within 5-6 hours (24V50), 7-8 hours (24V70), 10-11 hours (24V100) MAIN FEATURES
COMPACT & LIGHTWEIGHT: the charger weighs just 1.5 kg.- HIGH EASE OF USE: lightweight and compact, quick recharge
HIGH EASE OF USE: lightweight and compact, quick recharge- RELIABLE: built-in protection: no risk for overcharging. Charger switches off automatically when the battery is fully charged. Protected against reverse polarity.
- WARRANTY: 2 years.
RELIABLE: built-in protection: no risk for overcharging. Charger switches off automatically when the battery is fully charged. Protected against reverse polarity.
WARRANTY: 2 years.IMPORTANT INFO
PLEASE REVIEW THE BELOW INFORMATION BEFORE COMPLETING YOUR ORDER

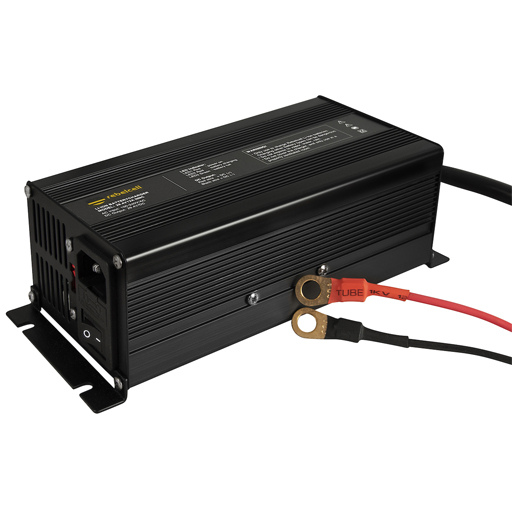

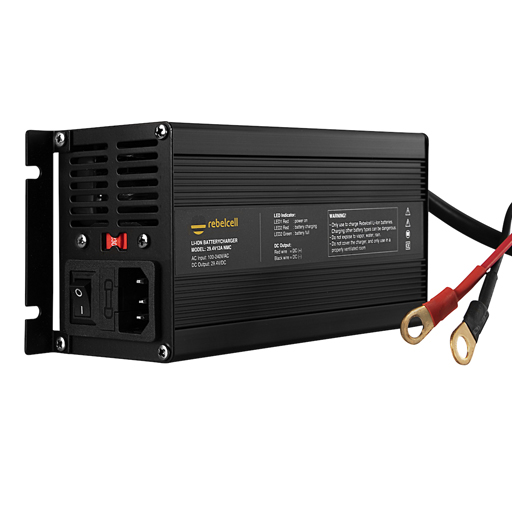

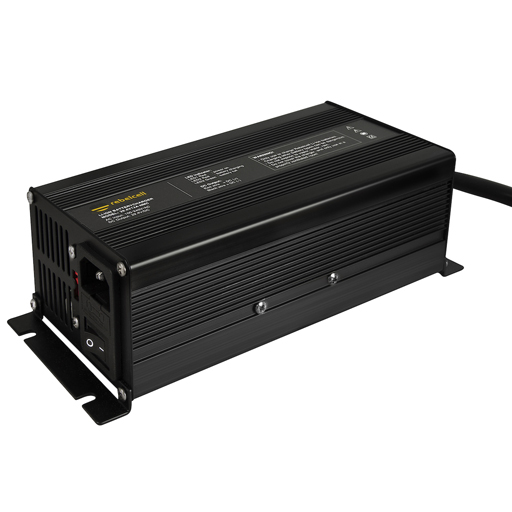

The Rebelcell 29.4V12A li-ion charger is only intended for use with the 24V50 / 24V70 / 24V100 li-ion battery. Read the safety warnings and instructions on the sticker on the charger before use.
DETAILS & SPECIFICATION
TECHNICAL SPECIFICATIONS
Technology | Automatic charger with advanced high frequency switch mode power supply technology |
Efficiency | >85% |
Size (in mm) | 210 × 90 × 65 |
Weight | 1.0 kg |
Weight package | 1.2 kg |
AC input | 230 Volt 50-60Hz |
Power | 360W |
Charging voltage | 29.4V |
Maximum charge current | 12A |
Charging profile | Pre-charge/CC/CV/Cut-off |
Connector | M8 tongue connector |
Charge status indicator | Yes, via LED |
Minimal battery voltage | 4V |
Works at temperature | 0°C to +40°C |
COMPATIBLE WITH | CHARGING TIME |
24V50 AV battery | 5-6 h. |
24V70 AV battery | 7-8 h. |
24V100 AV battery | 10-11 h. |

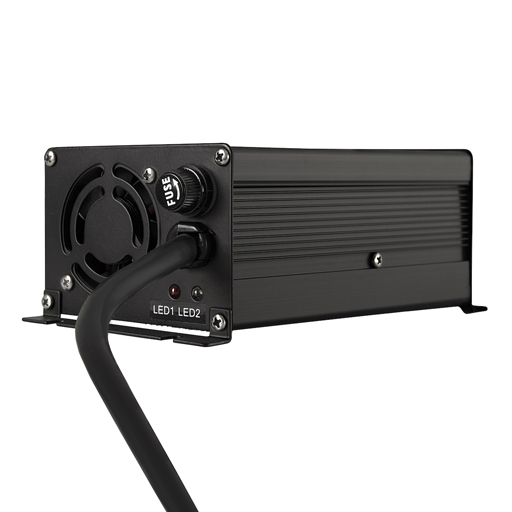

ELECTRONICS AND CHARGING INDICATOR
LED 1 | Red: charging |
LED 2 | Red (charging on) and green (fully charged) |
Over charge protection | Yes, ‘auto power off’ when charge process is completed |
Reverse polarity protection | Yes |
Short circuit protection | Yes |
Overvoltage protection | Yes |
High temperature protection | Yes |
Cooling | Yes, forced ventilation with fan to cool charger |
Heat sink | Yes, the outside case of the charger functions as heat sink |
CERTIFICATION AND WARRANTY
Warranty | Two years |
Certification | CE |
Standards (IEC 529) | 60950 |
EAN | 7106623687970 |
Product code | LC29V12REUA |
HS code | 85044030 |
