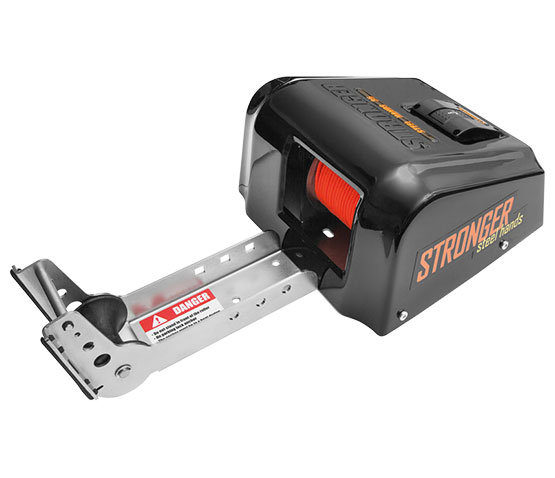

FEATURES
- Winch body The winch frame, as well as all the brackets (Steel Hands 35 models), are made of strong steel.
- Winch mechanism (for lifting and dropping the anchor) The mechanism of the winch consists of: an engine with a closed gear mechanism and a mechanical drive to effect the movement of the coil along the shaft. All mechanical parts involved in the operation of the winch are lubricated with a special water-repellent lubricant.
- The electrical part The electric part of the winch uses a 120 Watt motor with a working voltage of 12 V. On the cover (Steel Hands 35), a fixed three-position, waterproof button is mounted on the bed (Steel Hands 35). In the complete set the wire for connection of a winch to the storage battery in length of 5 meters and the thermal safety relay is delivered.
- The top winch cover for Steel Hands 35 The winch cover is made of a durable UV-resistant ABC plastic. On the winch cover there is a winch control button.
- Steel rope winch Steel Hands 35 The winch of the winch is made of strong steel 3 mm thick. The roller is equipped with a rolling roller made of durable plastic.
- Steel rope winch Steel Hands 35I The winch of the winch is made of strong steel 3 mm thick. There are 2 rolling rolls made of durable plastic on the roller.
- Anchor rope The winch is equipped with a kapron rope 40 m long, with a tensile force of 360 kg.
- Fasteners The winches are supplied with fixing galvanized bolts and nuts for fixing the winch and roulette body.
- Warranty sheet The product is completed with a warranty sheet, with a warranty period of 1 year.
- Packing The winch is packed in a sturdy shipping carton.
For correct and durable work of the winch, we recommend using STRONGER anchors!
SPECIFICATION
| Parameter | Value |
|---|---|
| Maximum anchor weight | 15 kg |
| Length of boat, up to | 7 m |
| Anchor rope | ∅ 4 mm, length 40 m |
| Roller | Yes |
| Control button | Yes |
| Control button function | Ascent / descent |
| Rod for safe transportation of armature | Yes |
| The function of a smooth entry of the anchor into the water | No |
| Free anchor reset | Yes |
| Armature lifting speed | 30 m/min |
| Amount in a package | 1 pc |
| The weight | 9 kg |
| Package size (L×W×H) | 377 × 307 × 177 mm |
| Winches Dimensions SH-35 (L×W×H) | 280 × 290 × 160 mm |
| Winches Dimensions SH-35I (L×W×H) | 205 × 240 × 142 mm |
| Dimension of the railways SH-35 (L×W×H) | 260 × 82 × 129 mm |
| Dimension of the railways SH-35I (L×W×H) | 340 × 82 × 129 mm |
| Model number | SH – 35, SH – 35I |
| Guarantee | 1 year |
| Max. Working load | 90 kg |
