Features

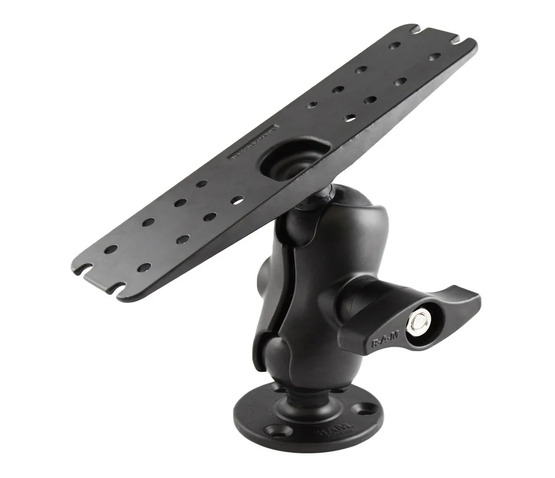

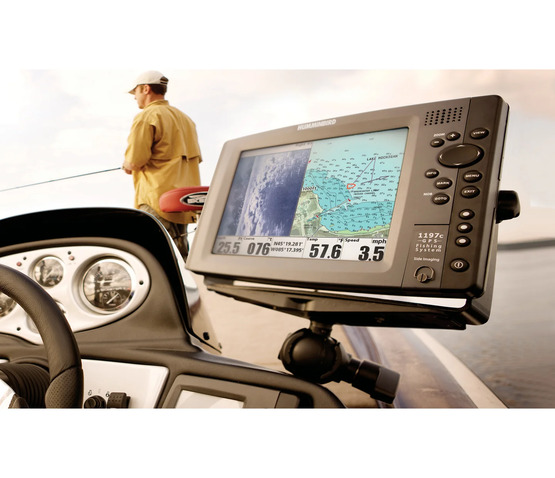

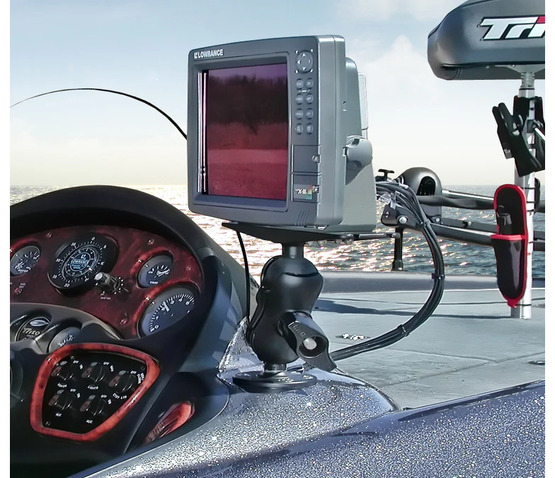

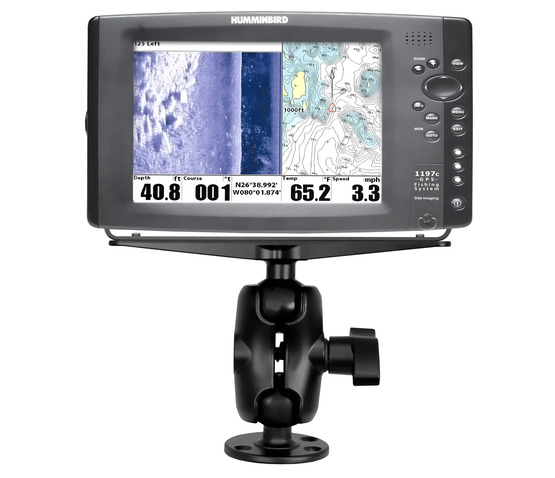

The RAM-D-111U-C-MI1 consists of a 3.68″ diameter round base, SHORT double socket arm with jam nut 2 way lock and 11″ x 3″ rectangular base. The round base contains pre-drilled holes, including two holes at 180 degrees and three holes at 120 degrees. The rectangle base contains different combinations of pre-drilled holes which will match up to many electronic devices and mounts, including Marine GPS, CB Radios, Ham Radios, Gimbal Brackets and more.
Specification
PRODUCT DIMENSIONS | Overall Length: 8.125″ |
SOCKET TO SOCKET LENGTH | 3.6″” |
HOLE PATTERN | See Drawings |
PLATE SIZE | Top Plate: 3″ x 11″ |
BALL SIZE | D Size (2.25″) |
| WEIGHT CAPACITY | Standard Use: 6 lbs Heavy-Duty Use: 5 lbs |
MATERIALS | Marine-grade aluminum |
PACKAGING TYPE | Poly bag |
| WEIGHT | 3.6 lb |
ADDITIONAL INFORMATION | The 11″ x 3″ rectangle base is a universal mounting bracket with a selection of mounting hole locations. In certain applications additional holes may need to be drilled for proper fit with your electronic device. |
