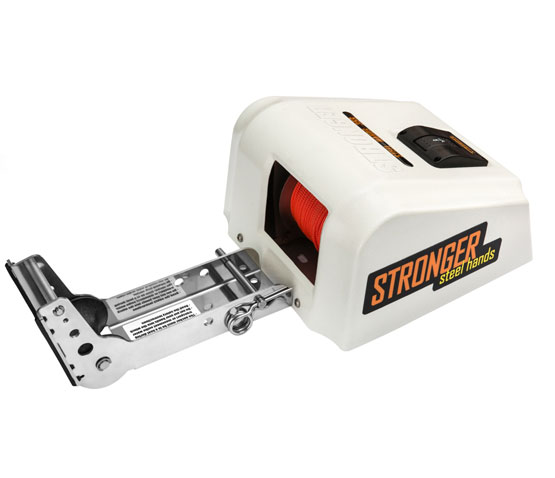

FEATURES
- Body hoist The winch body, as well as all fastening brackets, are made of strong stainless steel.
- Winch mechanism (for lifting and resetting the armature) The winch mechanism consists of an engine with closed gear mechanisms and a mechanical drive that moves the coil along the shaft. All mechanical parts are lubricated with special waterproof grease.
- Electrical The winch uses a motor with an operating voltage of 12 V. A latching three-position waterproof button is not installed on the cover. The kit includes a 5-meter connection wire and a thermal safety switch.
- Cover winches The winch cover is made of durable UV-resistant ABS plastic. The winch control button is located on the cover.
- Roller The winch rods are made of solid 3 mm stainless steel. The rollers include rolling rollers made of durable plastic.
- Anchor rope The winch is equipped with a 40 m nylon rope, with a tensile strength of 360 kg.
- Fasteners The winch comes with stainless steel bolts and nuts for mounting the winch and the roulette body.
- Warranty sheet Supplied with a warranty sheet valid for 1 year.
- Packaging The winch is packed in a sturdy cardboard shipping box.
For correct and durable work of the winch, we recommend using STRONGER anchors!
Anchor winch includes a roller and the winch itself. Using the anchor winch is prohibited without regular roller!
SPECIFICATION
| Parameter | Value |
|---|---|
| Maximum anchor weight | 15 kg |
| Boat length, up to | 7 m |
| Anchor rope | ∅ 4 mm, length 40 m |
| Guide roller | Yes |
| Control knob | Yes |
| Control knob intention | Hoisting / Descent |
| Rod for safe anchor transportation | Yes |
| Function of smooth anchor entry into water | No |
| Free fall anchor | Yes |
| Anchor hoisting speed | 30 m/min |
| Pcs. number in a package | 1 piece |
| Weight | 9 kg |
| Package dimensions (L×W×H) | 377 × 307 × 177 mm |
| Winch dimensions (L×W×H) | 280.5 × 280.5 × 151 mm |
| Guide roller dimensions (L×W×H) | 260 × 82 × 129 mm |
| Model number | SH – 35S |
| Warranty | 1 year |
| Maximum working load | 90 kg |
