FEATURES
- Housing winch Housing winches, as well as all mounting brackets, made of solid steel.
- Winch mechanism Winch mechanism consists of a closed-reduction mechanism and drums of the anchor rope.
- Electric equipment In the electrical part of the winch, a 85-watt motor with a working voltage of 12V is used. On the cover there is a fixed three-position, waterproof button. The kit includes a wire for connecting the winch to a battery of 5 meters long and a thermal safety relay.
- Winch cover The lid of winch is executed from a durable plastic. On the lid of winch the management button is located by a winch.
- Roller Winch cover is made from stainless steel and contains a control knob.
- Anchor rope The winch is equipped with capronic rope of 30 m long with rupture force 360 kg.
- Fastening Galvanized retaining bolts and nuts are delivered as a winch set to fasten winch casing and guide roller.
- Warranty document The item has a warranty document that confirms warranty period 1 year.
- Packing The winch is packed in hard shipping cardboard.
For correct and durable work of the winch, we recommend using STRONGER anchors!

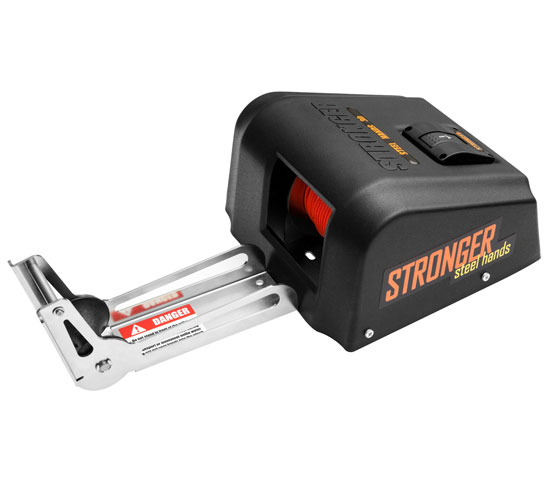

Anchor winch includes a roller and the winch itself. Using the anchor winch is prohibited without regular roller!
SPECIFICATION
| Parameter | Value |
|---|---|
| Maximum anchor weight * | 10 kg |
| Boat length, up to | 4.6 m |
| Anchor rope | ∅ 4 mm, length 30 m |
| Guide roller | Yes |
| Control knob | Yes |
| Control knob intention | Hoisting / descent |
| A rod for safe anchor transportation | Yes |
| The function of a smooth entry of the anchor into the water | No |
| Free fall anchor | Yes |
| Anchor hoisting speed | 20 m/min |
| Pcs. number in a package | 1 piece |
| Weight | 7.5 kg |
| Package dimensions (L×W×H) | 377 × 307 × 177 mm |
| Winch dimensions (L×W×H) | 280 × 290 × 160 mm |
| Guide roller dimensions (L×W×H) | 260 × 82 × 129 mm |
| Model Number | SH – 30 |
| Warranty | 1 year |
| Max. Working load | 90 kg |
