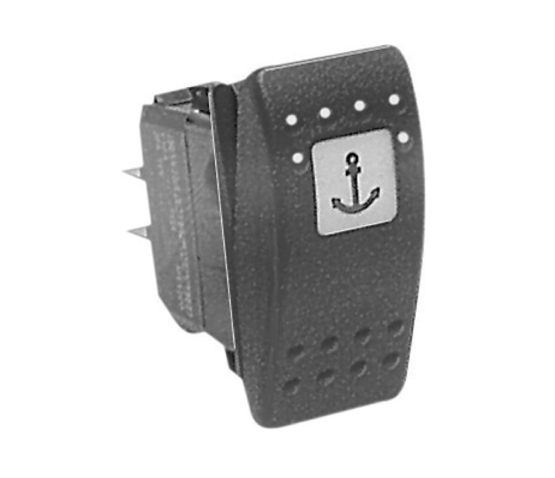

ON-OFF Switch Red LED 12 V

39,00



Water-resistant IP56 switch for panel installation requiring a rectangular hole size 21.5×36.8 mm. Maximum capacity 20 A at 12 V, 15 A at 24 V. Fitted with two lights: one illuminates the user symbol when connected (always on), the other illuminates a special gap under the symbol when activated. Slot to be ordered separately.


SKU: 14.192.51 Categories: ,
  • Description
  • Reviews (0)
Description

SPECIFICATION

BrandOsculati
TypeON-OFF switch
ProtectionIP56
Voltage12 V
Max current20 A (12 V), 15 A (24 V)

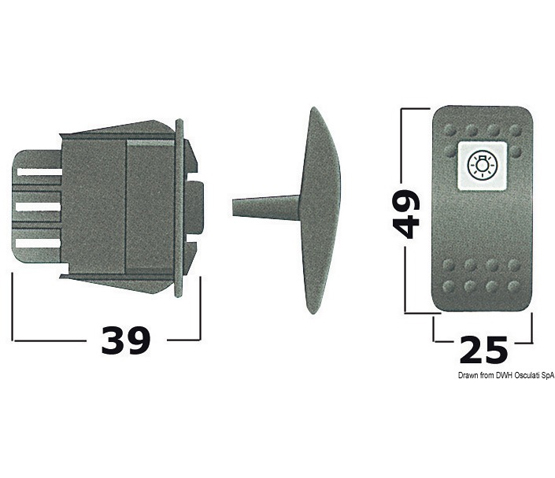

Installationrectangular hole 21.5×36.8 mm
Terminals4
Height4 cm
Width5 cm
Length2 cm
Weight0,03 kg
