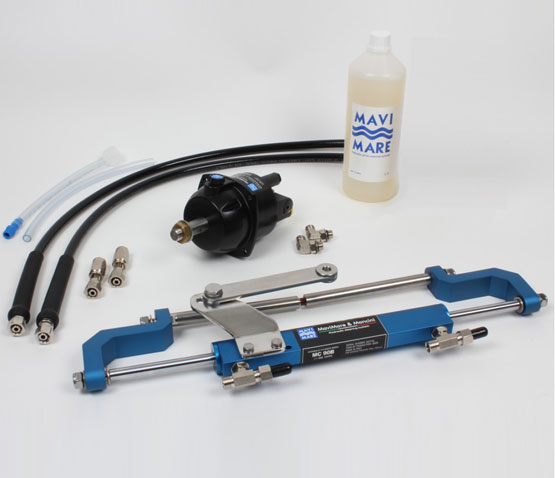

Hydraulic steering system packaged in a box for outboard engine up to 80 hp, kit composed of:

• Pump GM3-MRA + cylinder MC90B
• Chrome plated brass fittings (1 kit GTN7X10916ORB + 1 Kit AC10/T916)
• Fast connection filler tube kit
• 1 lt. hydraulic oil
• 2 x 5 mt. hoses SAE 100 R7 1/4 with fittings pressed on one end

It’s possible to order hoses completely fitted on both ends.

Performance steering and easy installation.

We recommend to order the steering system with SAE 100 R7 5/16 hose for installation on high performance engine.

NEW: support rod composed of two pieces for easy and fast installation, expecially with reduced space condition on the splash well.

WARNING: Use kit X.342 for applications on Yamaha/Tohatsu 40/50/60/70 Hp engines.
