Image definition like you’ve never seen.
REAL-TIME IMAGES
Real-time sonar ensures that your live images are as accurate as possible.
CLEAR VISION
See exactly what you need with reduced noise and fewer sonar artifacts that impede your picture of fish and structure.
IMAGE STABILISATION
A built-in stabilisation system keeps the sonar image on your compatible chartplotter steady, even in rough conditions.
VIVID COLOUR PALETTES
Choose from seven vivid colour options — including Aqua, Caribbean, Lava and more — to see fish and structure in maximum contrast and clarity.
Select a LiveScope mode to fit your environment.
FORWARD MODE
Scout ahead of your boat to see what’s happening in real time.
DOWN MODE
Explore live views of the activity directly beneath your boat.
PERSPECTIVE MODE
See under the water with a view from your perspective above the water.
In The Box

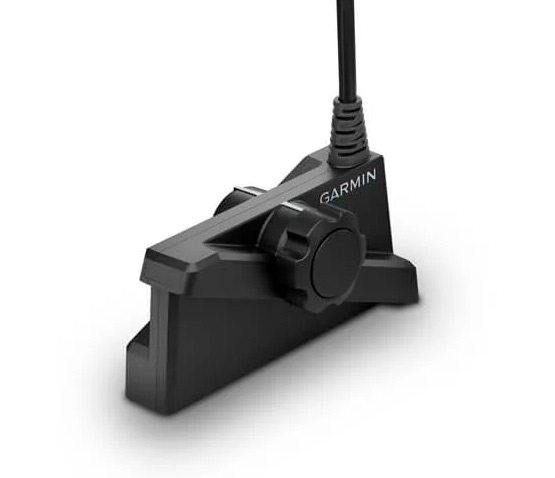

- Panoptix LVS34 transducer

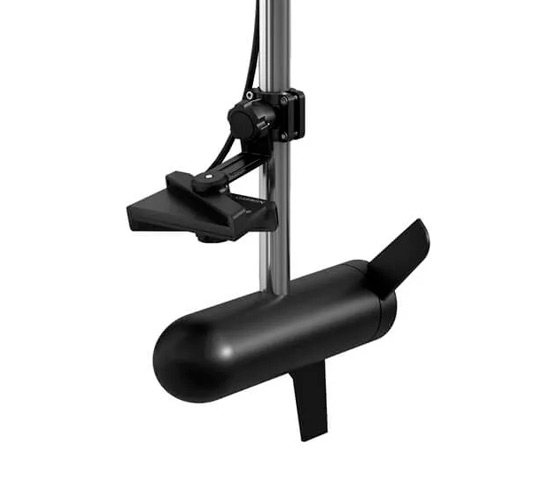

- Perspective mount

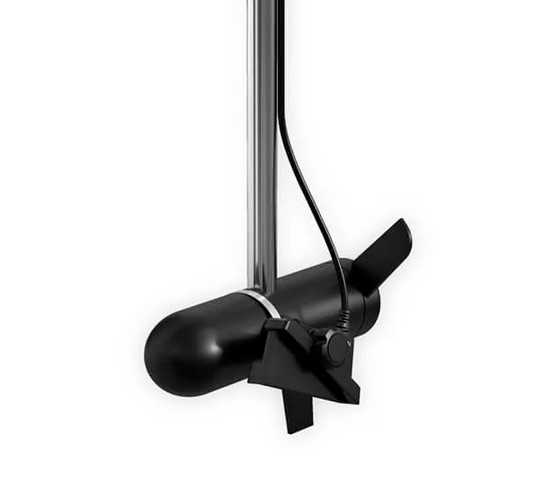

- Trolling motor barrel mount

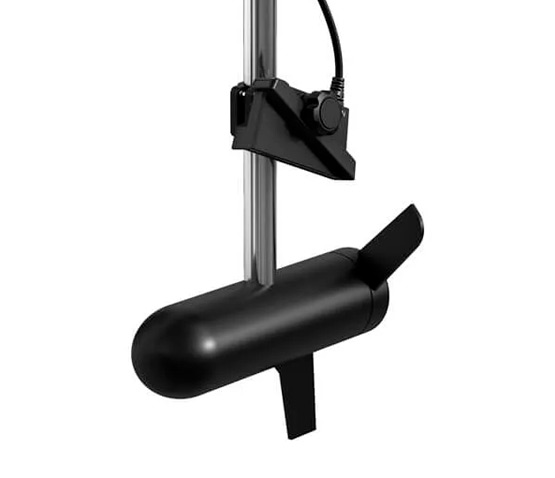

- Shaft mount
- Documentation
Specification
General
DIMENSION | 16.2 x 3.1 x 4.8 cm |
WEIGHT | 2.25 lbs (1.02 kg) |
IPX7 | |
TRANSDUCER BEAMWIDTH | 20° x 135° |
TRANSDUCER CABLE LENGTH | 20 ft |
TRANSDUCER NUMBER OF PINS | 21 |
TEMPERATURE RANGE | Operating: 0 C to 40 C |
Connections
GARMIN MARINE NETWORK PORTS | 1 (small connector) |
- Minimum depth: 3′ (0.91 m)
- Sonar type: Live
- Sonar type: Live
- Transducer cable length: 20 ft (6.1 m)
- Transducer number of pins: 21
Sonar features & specifications
FREQUENCY | 530 – 1,100 kHz |
MAXIMUM DEPTH | Down and Forward: 61.0 m |
SONAR TYPE | Live |
TARGET SEPARATION @100′ | 14″ |
PERSPECTIVE MODE MOUNT INCLUDED | Yes |
Electrical Features
POWER INPUT | 10-32 V |
POWER USAGE | 21 W typical, 58 W max |
TRANSMIT POWER | 500 W |
FUSE | 7.5 A |
COMPASS SAFE DISTANCE | 4″ (0.1 m) |
