WHAT YOU'LL LOVE

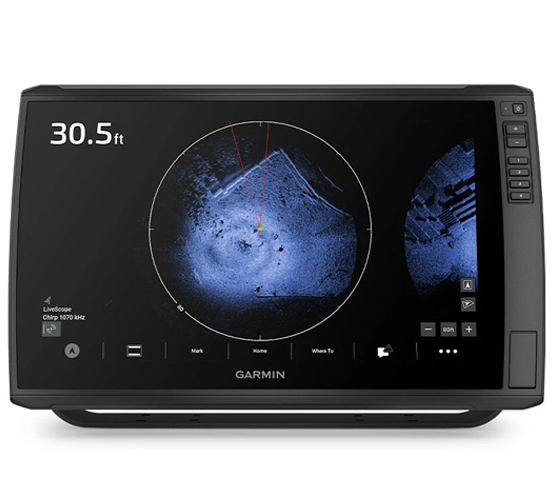

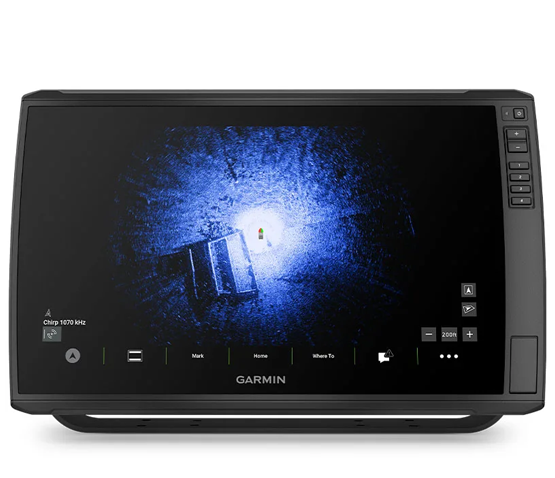

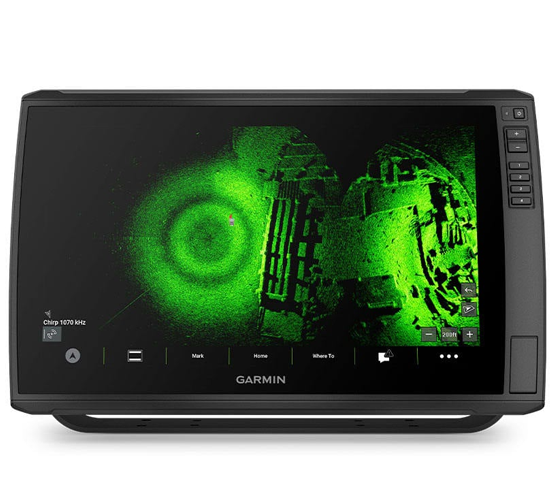

360-DEGREE ONEVÜ™ SONAR
Unlock the toughest underwater hiding spots with OneVü sonar, the crisp, clear 360-degree underwater imagery in 2D or 3D views.
LARGE COVERAGE AREA
Scan and store up to a football-field size of imagery in a single power cycle. True Motion technology keeps your true location as you move within the scanned area.

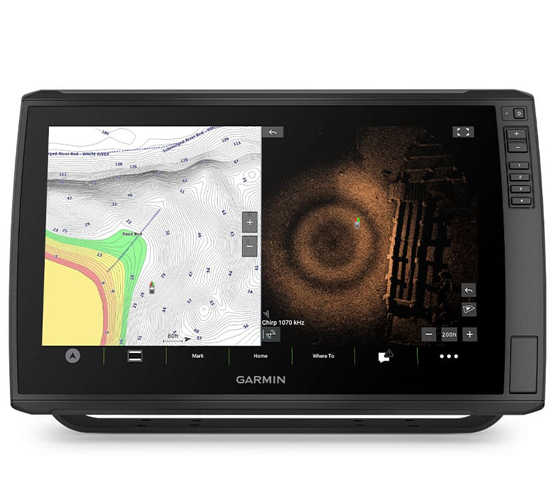

CHARTPLOTTER INTEGRATION
Optimize your sonar from your compatible Garmin chartplotter with on-screen controls that let you change scanning modes, adjust sonar frequencies and select vivid color palettes.

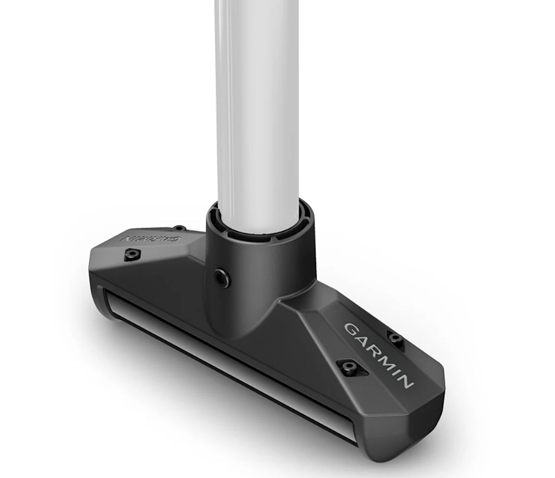

SIMPLE INSTALLATION

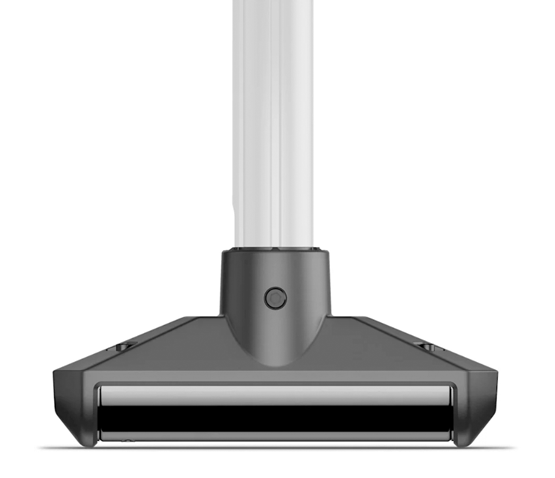

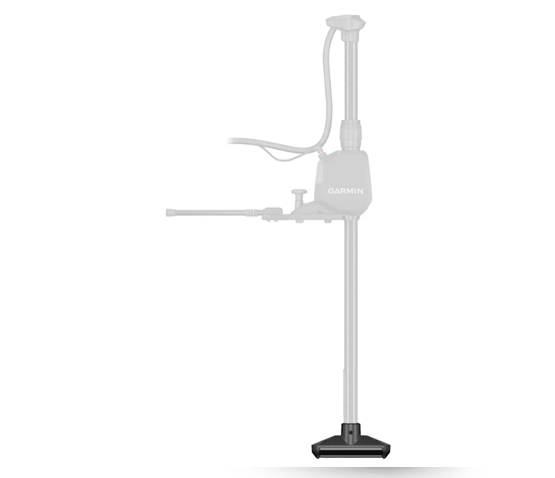

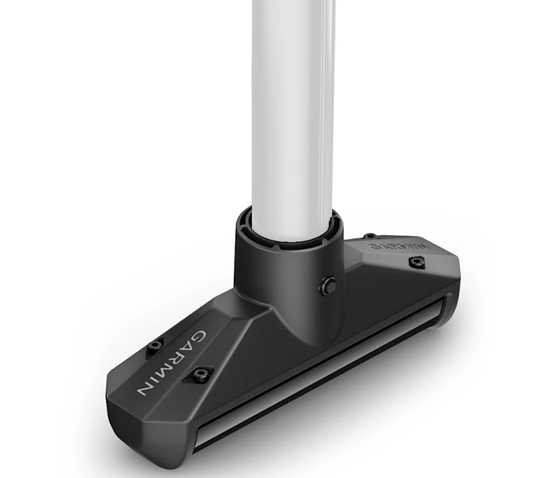

Easily mount your GT360UHD transducer onto your Spy pole and run your cables through the shaft.
ENHANCED ONEVÜ EXPERIENCE
Layer LiveScope live sonar over the OneVü sonar imagery to see an all-new 3D view — and a beam overlay to see where LiveScope is pointed in 2D mode.
MULTIPLE SCANNING MODES
Use your compatible Garmin chartplotter to select the scanning mode that best fits your style of fishing. Choose between auto, manual or constant scan.
SELECT YOUR SCANNING MODE
AUTO SCAN
Automatically trigger a new scan when your boat travels to a new area.
MANUAL SCAN
Capture data only from the areas you want by manually initiating your scan.
CONSTANT SCAN
Continually scan your boat’s surroundings for consistent data updates as you move.
In The Box
- GT360UHD 12-pin transducer
- GT360UHD transducer mount for Spy™ Pole

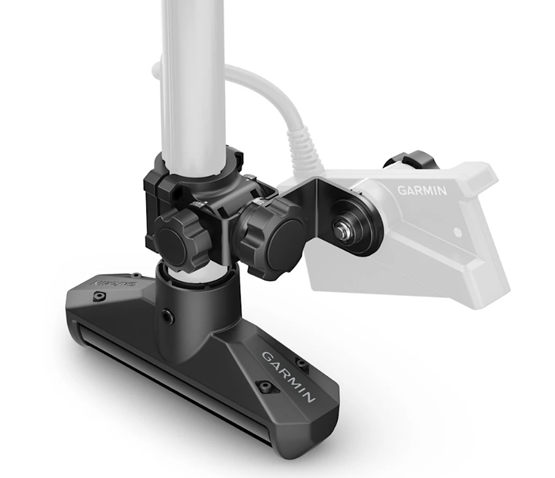

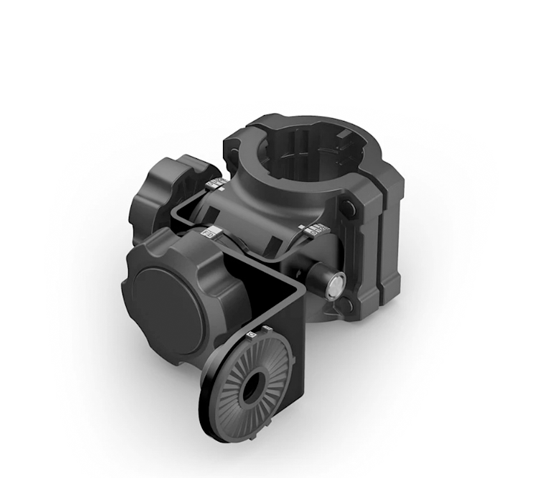

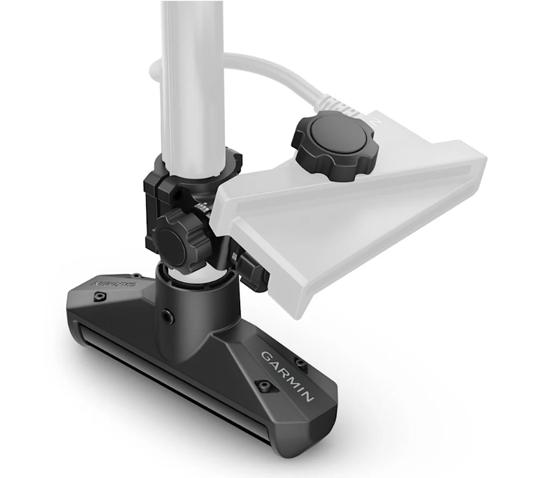

- LiveScope™ adjustable perspective shaft mount
- Dogbone stabilizer
- Mounting hardware
- Documentation
Specification
General |
|
| TRANSDUCER FREQUENCY | OneVü/SideVü: 455 kHz, 800 kHz, 1070 kHz |
|---|---|
| TRANSDUCER POWER | 500 W |
| TRANSDUCER BEAMWIDTH | OneVü/SideVü 0.52 x 52 @ 1000 kHz, 0.64 x 35 @ 800 kHz, 1.1 x 52 @ 455 kHz |
| TRANSDUCER MAXIMUM DEPTH | OneVü/SideVü: 500 ft range |
| TRANSDUCER CABLE LENGTH | 20.3 ft (6.2 m) |
| TRANSDUCER DEPTH/SPEED/TEMPERATURE | Depth and Temperature |
| TRANSDUCER NUMBER OF PINS | 12 |
| ONEVÜ SOURCE | Yes |
| DIMENSIONS (WITH MOUNT; LXWXH) | 216 mm (8.5″) x 58 mm (2.3″) x 97 mm (3.8″) |
Transducer Support |
|
| TRANSDUCER FREQUENCY | OneVü/SideVü: 455 kHz, 800 kHz, 1070 kHz |
|---|---|
