Better fishing comes built-in.
LIVESCOPE™ SONAR SUPPORT

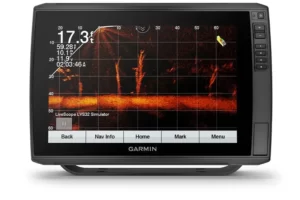

ECHOMAP Ultra supports a variety of Garmin transducers (sold separately), including LiveScope all-seeing live sonar.

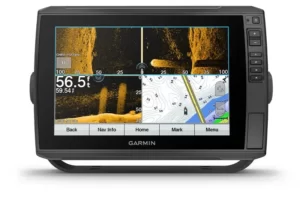

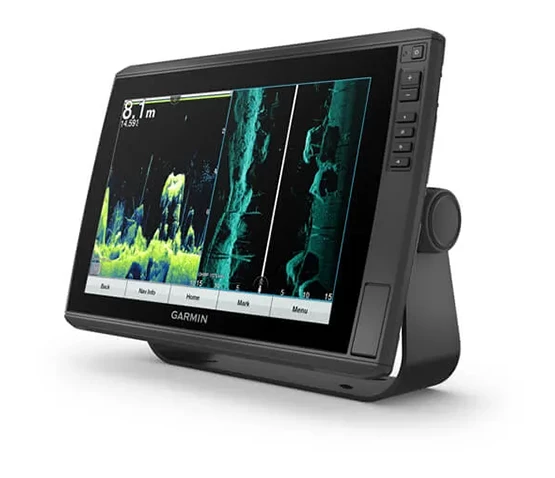

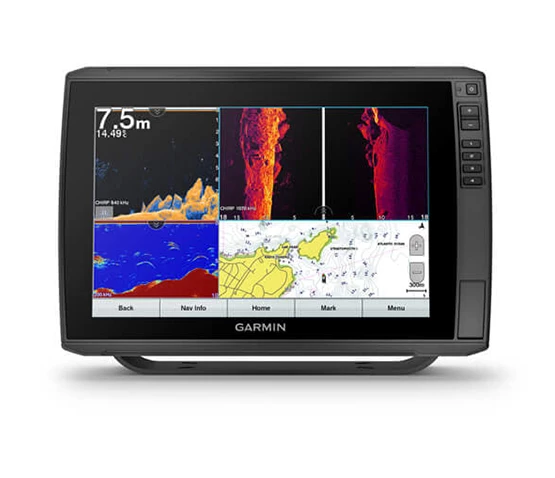

BUILT-IN UHD SONAR

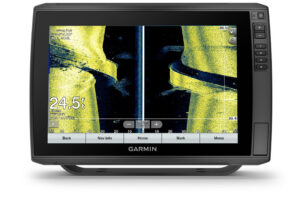

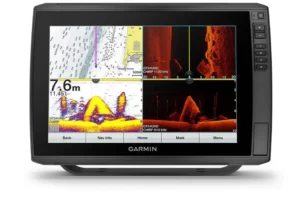

Built-in UHD sonar provides Garmin CHIRP traditional sonar plus Ultra High-Definition ClearVü™ and SideVü™ scanning sonars when paired with a compatible UHD transducer. Transducer bundled products include the GT56 transducers with three scanning sonar frequencies and 20% greater range for your UHD SideVü sonar.
VIVID COLOR PALETTES

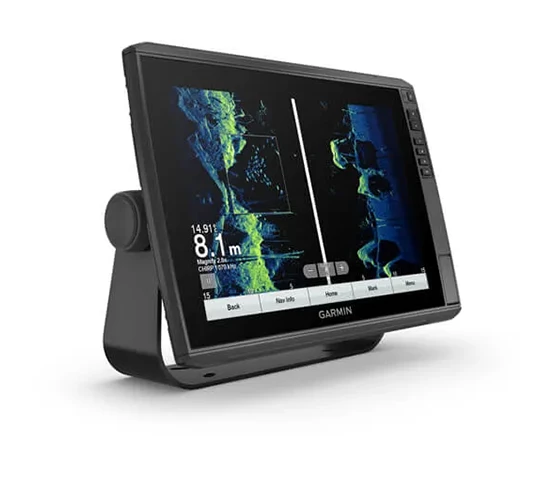

High-contrast vivid scanning sonar color palettes make it easier than ever to distinguish targets and structure.

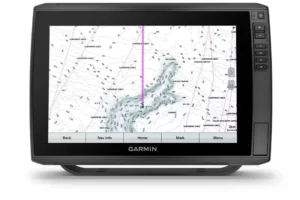

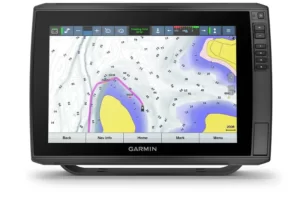

ADD CHARTS
Experience unparalleled coverage and detail with optional Garmin Navionics+ integrated mapping or optional Garmin Navionics Vision+™ premium mapping with high-resolution relief shading, satellite imagery, sonar imagery and more. They even come with a 1-year subscription for downloadable daily updates.
QUICKDRAW CONTOURS

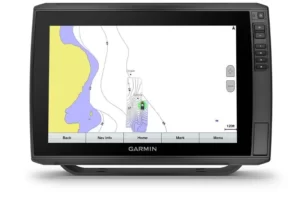

Create personalized fishing maps on-screen with 1’ contours. Keep the data to yourself, or share it with the Garmin Quickdraw™ Community on the Garmin Connect™ app2.
Stay connected on and off the water.
NETWORK CAPABLE
If you have multiple compatible ECHOMAP Ultra 10” or 12” units or ECHOMAP Plus or UHD 7” and 9” units on your boat, you can share information — such as sonar, user data and charts — among them.
NMEA 2000® NETWORK COMPATIBILITY

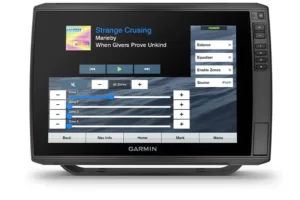

Connect to your compatible autopilots, digital switching, weather, Fusion-Link™ audio system, media, VHF, AIS, engine data, heading sensors — such as the SteadyCast™ sensor — and more from one screen.
ACTIVECAPTAIN APP

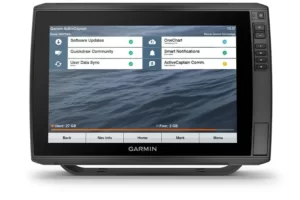

Built-in Wi-Fi® connectivity pairs with the free all-in-one mobile app for access to the OneChart™ feature, smart notifications, software updates, Garmin Quickdraw Community data and more1.
FORCE® TROLLING MOTOR COMPATIBILITY
Take control of the most powerful and efficient trolling motor available3, route it to waypoints, follow tracks and more from the screen of your chartplotter.
TAKE IT WITH YOU

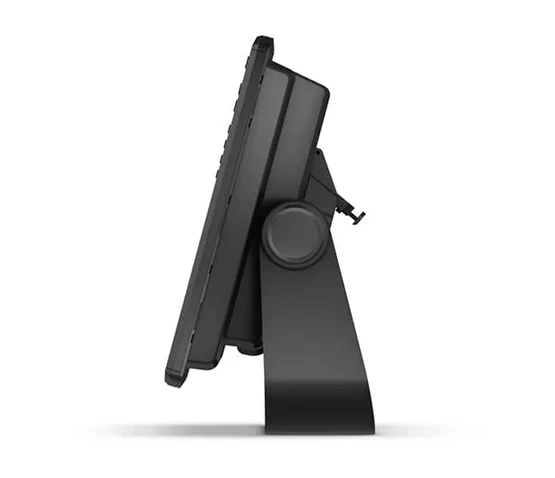

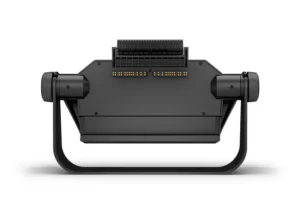

Keep your ECHOMAP Ultra safe and secure. Cords plug directly into the quick-disconnect bail mount, which allows you to quickly install and remove your unit.
IN THE BOX
- ECHOMAP Ultra 122sv with worldwide basemap
- GT56UHD-TM transducer
- Power/data cable

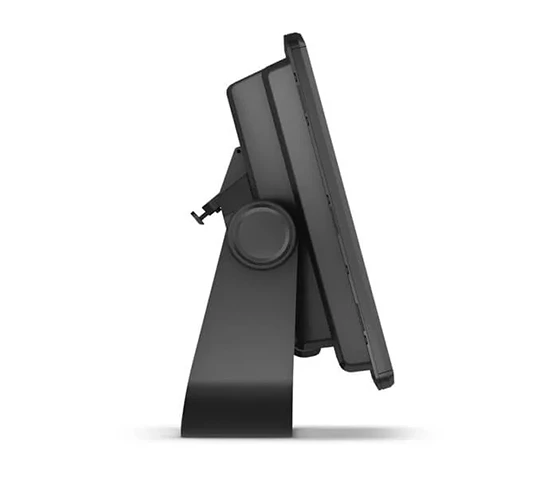

- Tilt mount with quick release cradle
- Flush mount
- Protective cover
- Hardware
- Documentation
Specification
General |
|
| DIMENSION | 13.4 x 9.0 x 3.9 (34.1 x 22.9 x 9.8 cm) |
|---|---|
| TOUCHSCREEN | Yes |
| INPUT | Touchscreen with Keyed Assist |
| DISPLAY SIZE | 10.3” x 6.4”; 12.1 diagonal (26.1 cm x 16.3 cm; 30.7 cm diagonal) |
| DISPLAY RESOLUTION | 1280 x 800 pixels |
| DISPLAY TYPE | WXGA display |
| WEIGHT | 5.5 lbs (2.5 kg) |
| WATER RATING | IPX7 |
| MOUNTING OPTIONS | Bail or flush |
Maps & memory |
|
| ACCEPTS DATA CARDS | 2 microSD™ cards |
|---|---|
| WAYPOINTS | 5,000 |
| TRACK POINTS | 50,000 |
| TRACKS | 50 saved tracks |
| NAVIGATION ROUTES | 100 |
Sensors |
|
| HAS BUILT-IN RECEIVER | Yes |
|---|---|
| RECEIVER | 10 Hz |
| NMEA 2000® COMPATIBLE | Yes |
| NMEA 0183 COMPATIBLE | Yes |
| GPS | Yes |
| SUPPORTS WAAS | Yes |
Built-in maps |
|
| TIDE TABLES | Yes |
|---|---|
Optional map support |
|
| GARMIN NAVIONICS+™ | Yes |
|---|---|
| GARMIN NAVIONICS VISION+™ | Yes |
| TOPO | Yes |
| STANDARD MAPPING | Yes |
| GARMIN QUICKDRAW CONTOURS | Yes |
Chartplotter features |
|
| AIS | Yes |
|---|---|
| DSC | Yes |
| SUPPORTS FUSION-LINK™ COMPATIBLE RADIOS | Yes |
| GCV BLACK BOX SONAR SUPPORT | Yes |
| ACTIVECAPTAIN MOBILE PLANNING COMPATIBLE | Yes |
| SAILING FEATURES | Yes |
Electrical features |
|
| POWER INPUT | 9 to 18 Vdc |
|---|---|
| TYPICAL CURRENT DRAW AT 12 VDC | 3.0 A |
| MAXIMUM CURRENT DRAW AT 12 VDC | 3.3 A |
| MAXIMUM POWER USAGE AT 10 VDC | 26.2W |
Sonar features & specifications |
|
| DISPLAYS SONAR | Yes |
|---|---|
| POWER OUTPUT | 600 W |
| TRADITIONAL SONAR (DUAL FREQUENCY/BEAM) | built-in (single channel CHIRP, 70/83/200 kHz, L, M, H CHIRP) |
| CLEARVÜ | built-in 260/455/800/1000/1200 kHz |
| SIDEVÜ | built-in 260/455/800/1000/1200 kHz |
| PANOPTIX™ SONAR | Yes |
| LIVESCOPE | Yes |
Connections |
|
| NMEA 2000® PORTS | 1 |
|---|---|
| CONNECTIONS NMEA0183 INPUT PORTS | 1 |
| NMEA 0183 INPUT (TX) PORTS | 1 |

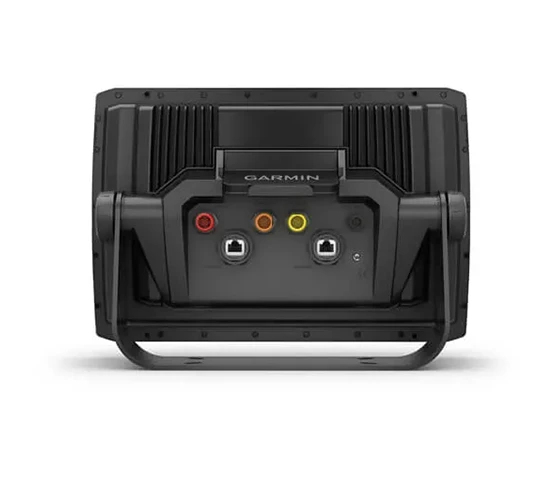

| GARMIN MARINE NETWORK PORTS | 2 (large connector) |
| 12-PIN TRANSDUCER PORTS | 1 LVS sonar; 1 scanning sonar |
