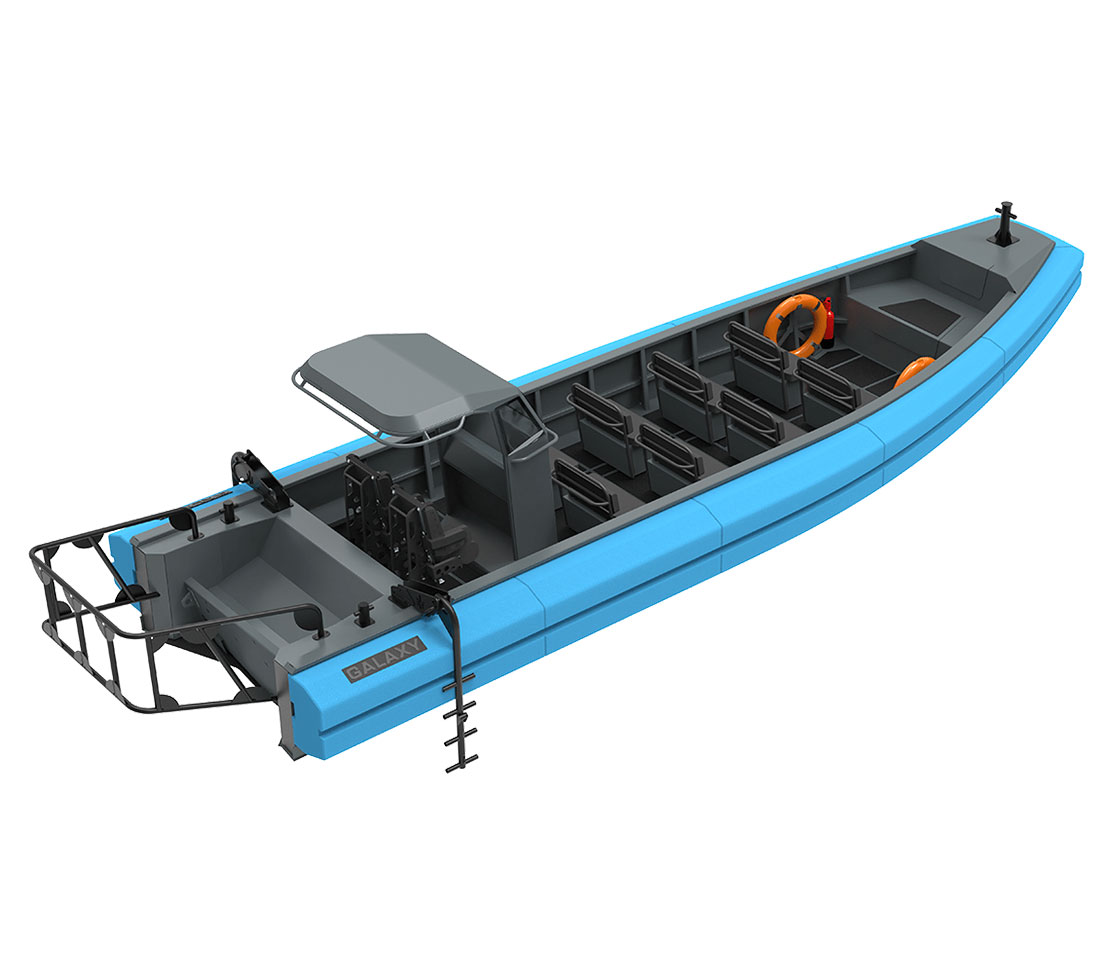

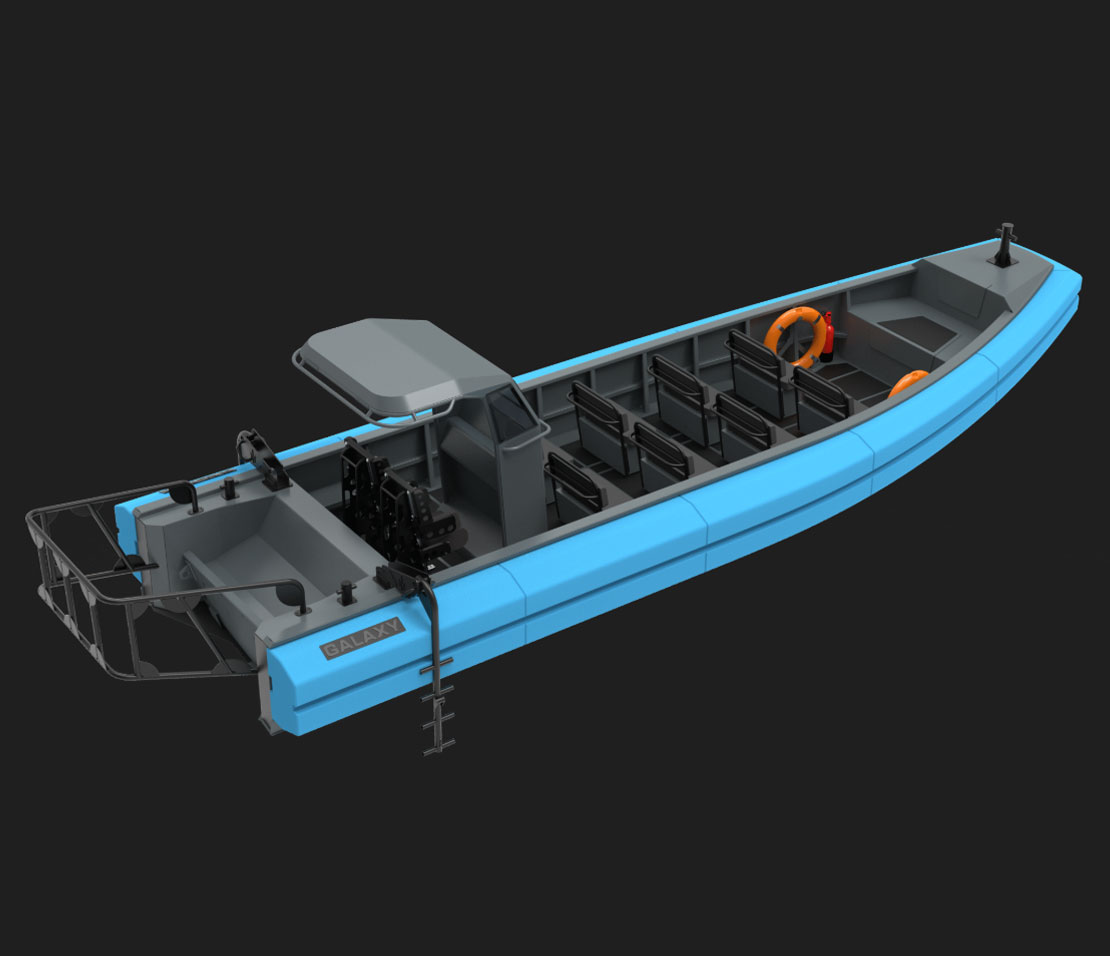

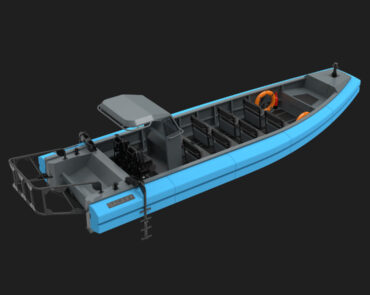

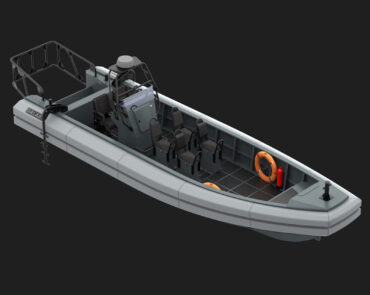

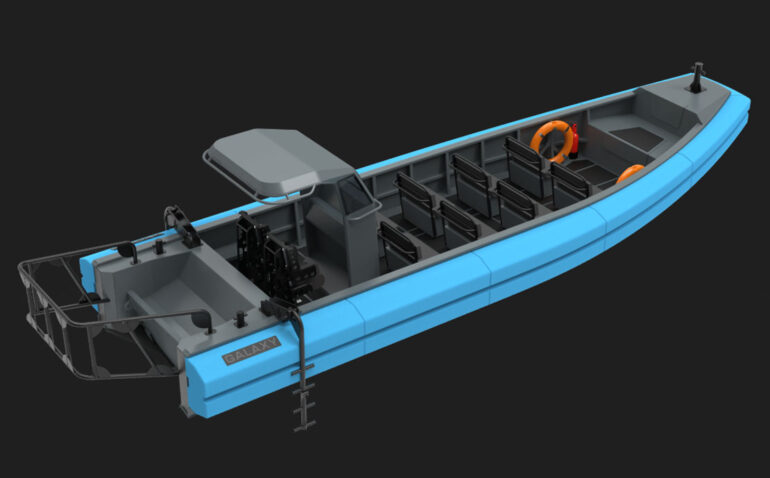

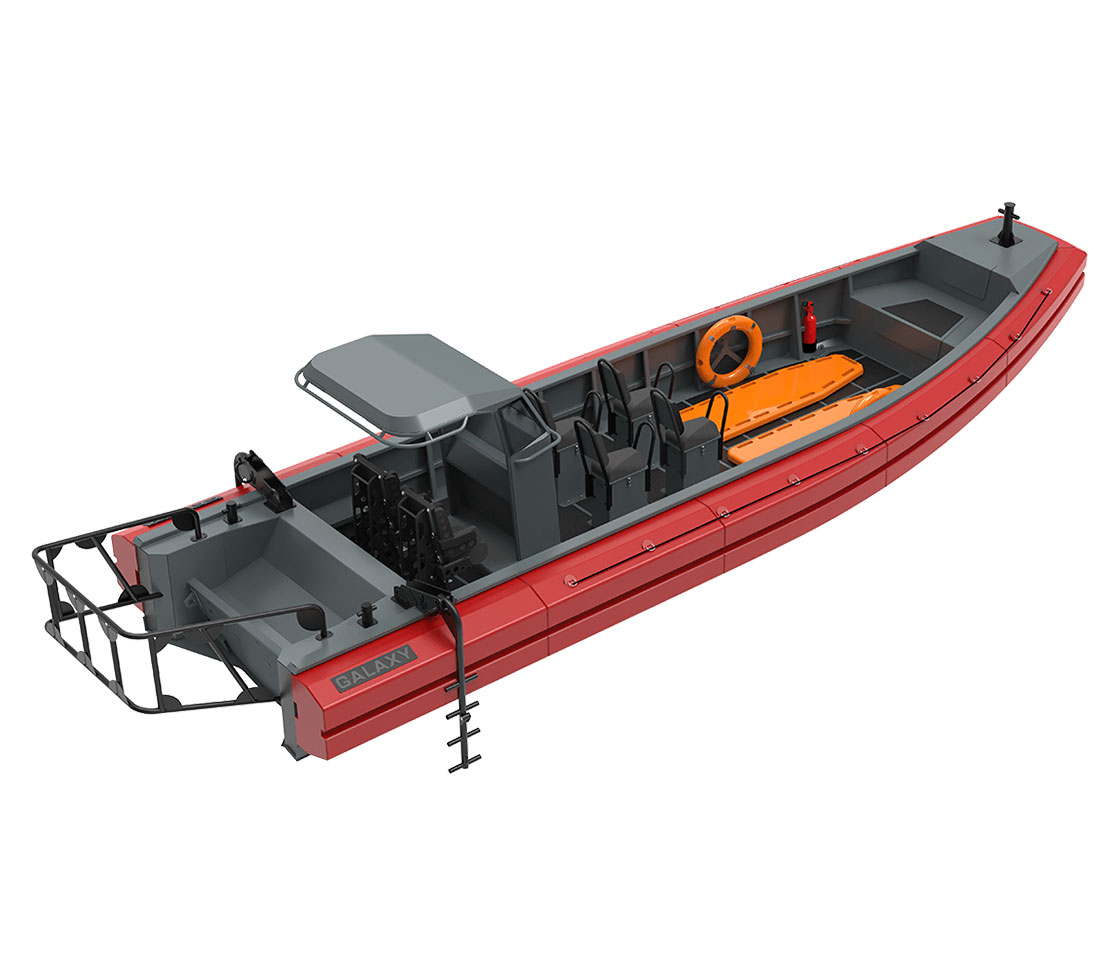

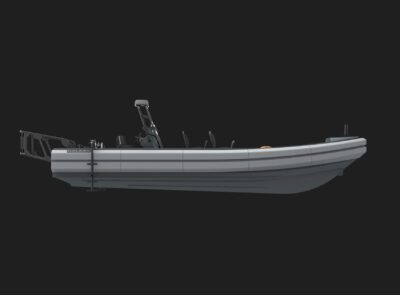

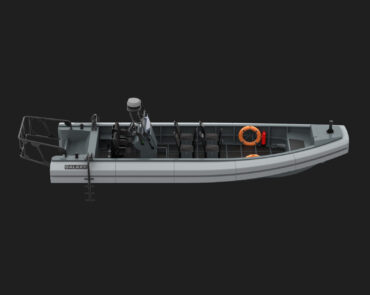

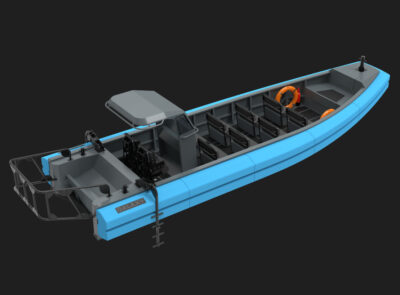

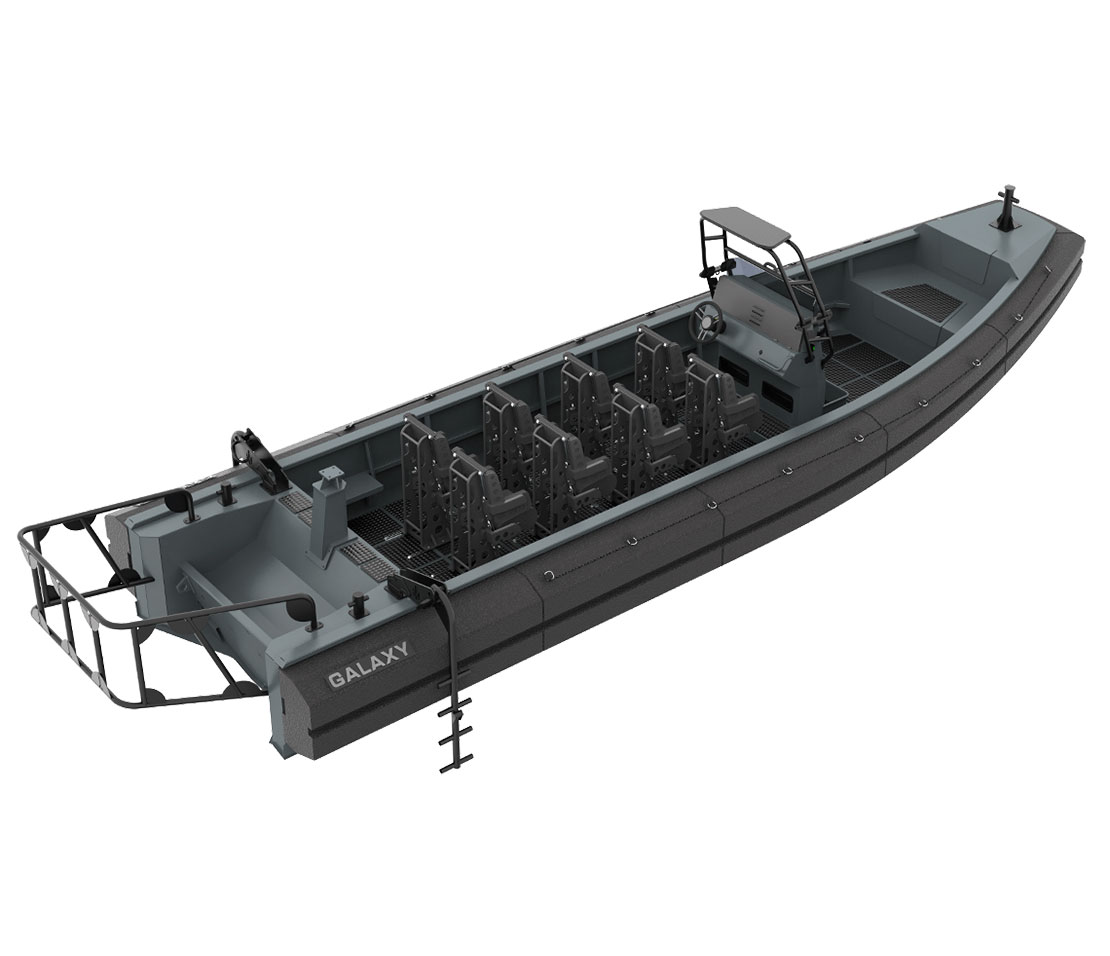

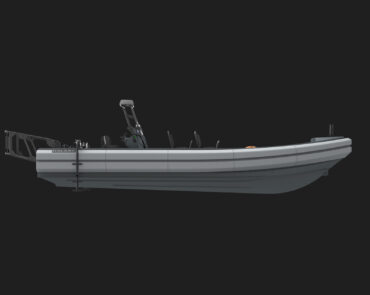

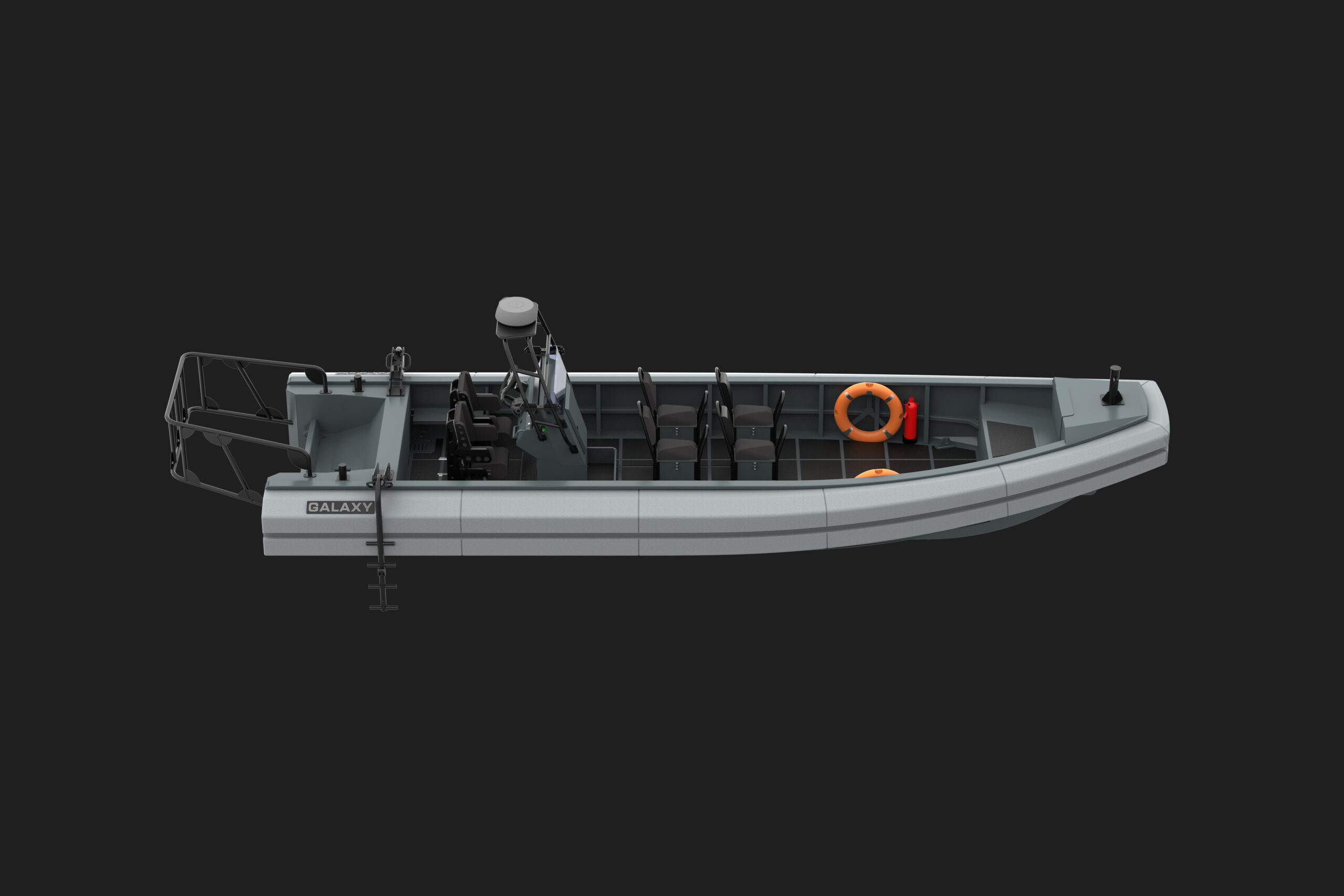

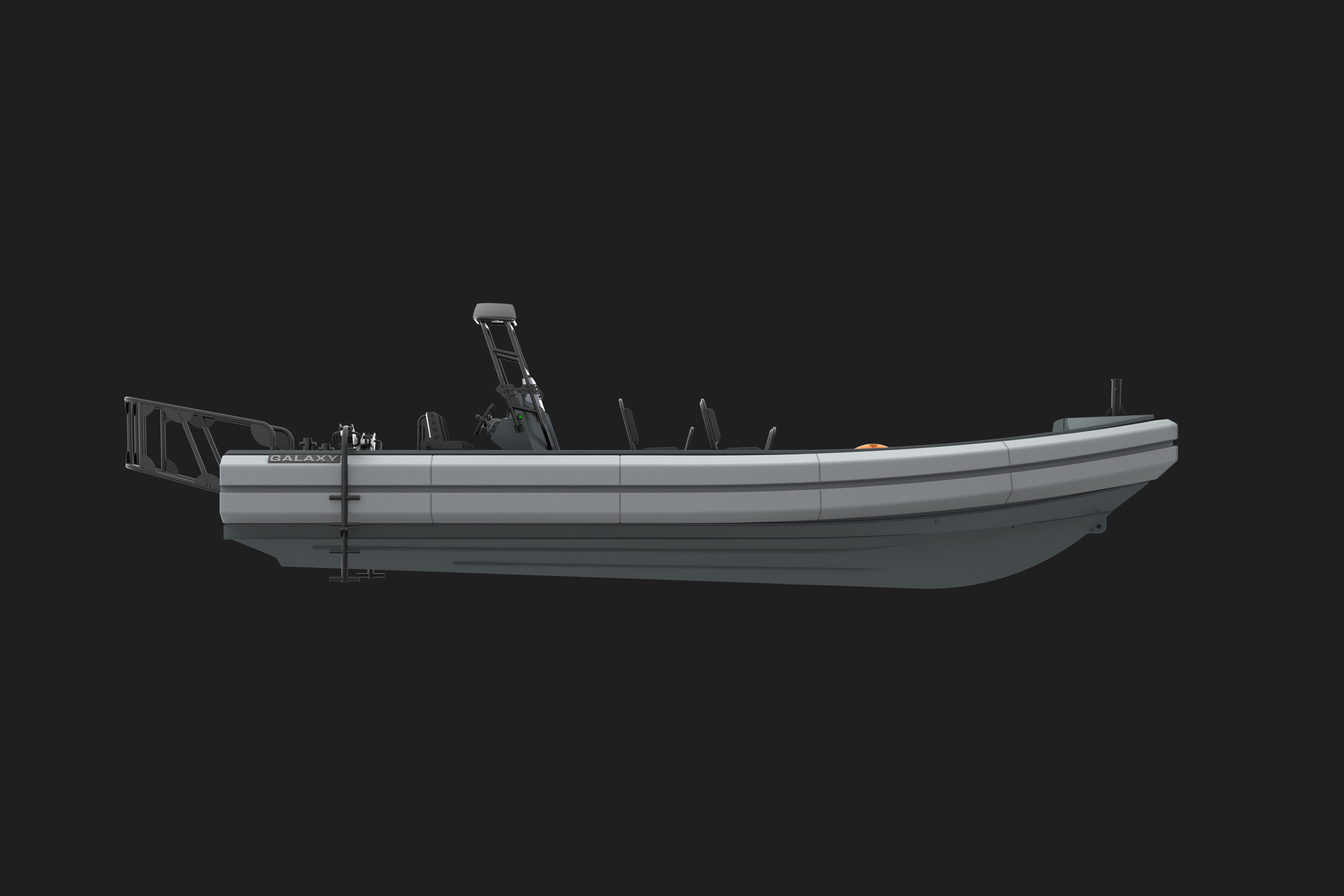

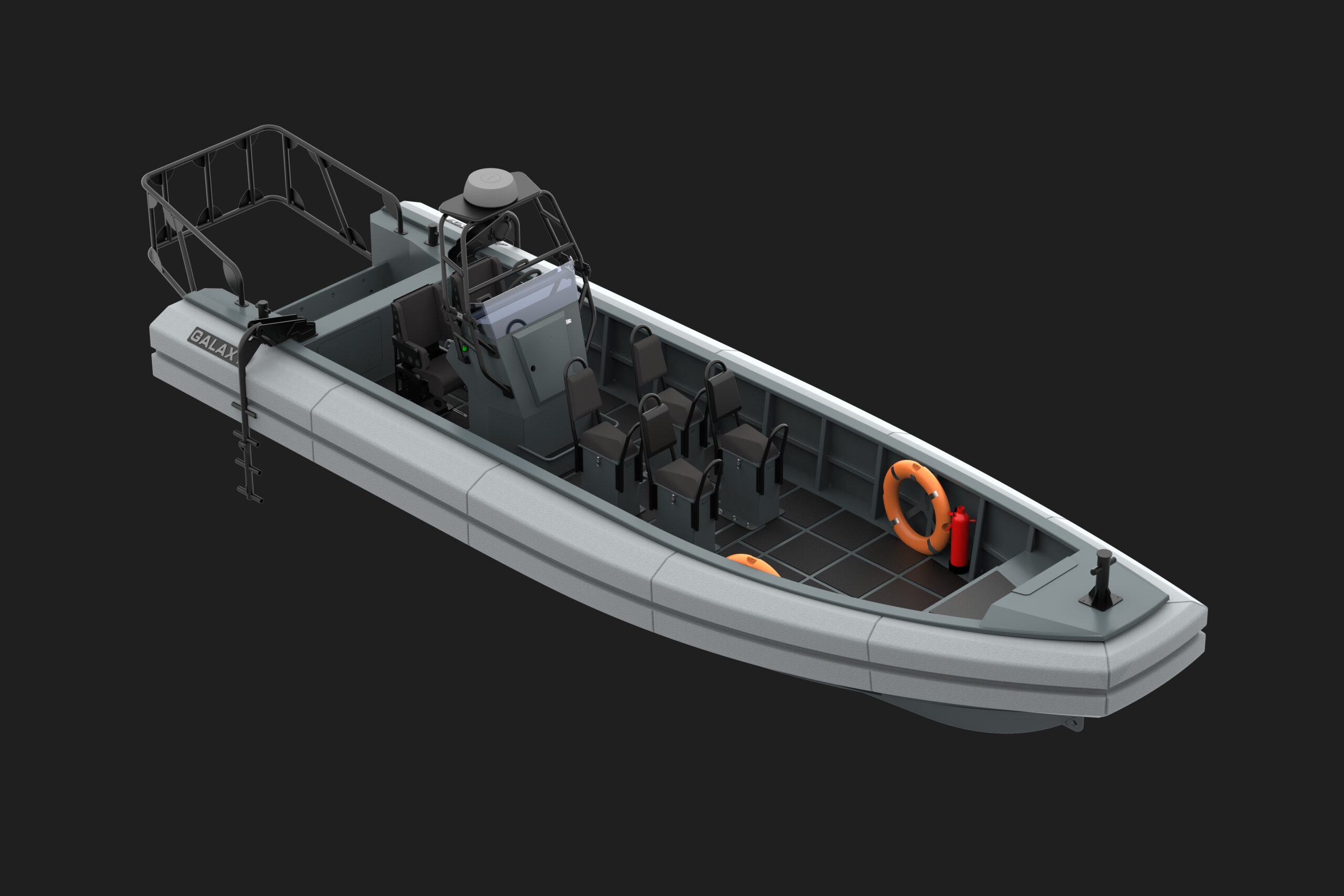

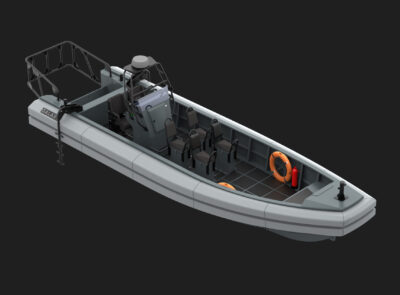

The Galaxy Trident T10 is a large offshore workboat designed for demanding professional tasks. It offers exceptional deck space and high load capacity for advanced operations.

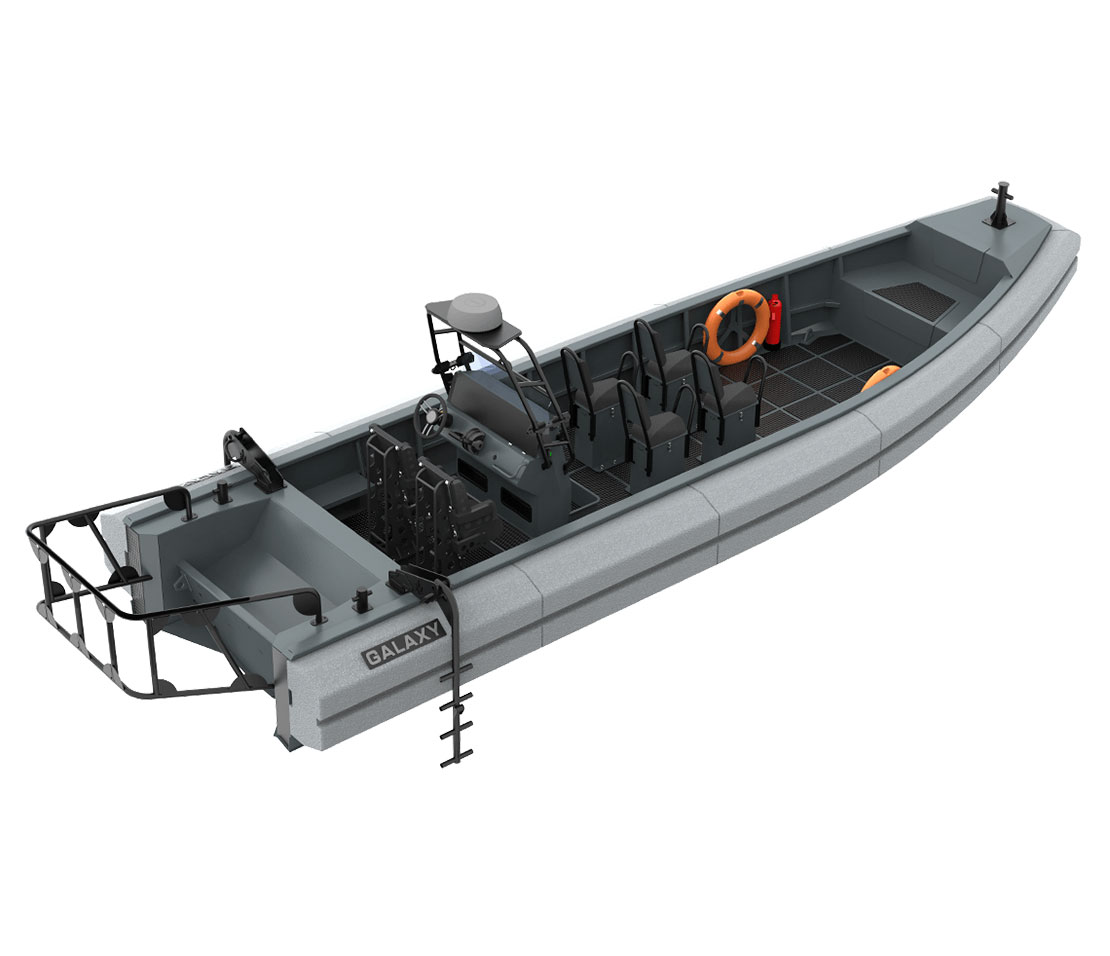

This model is ideal for offshore patrol, transport of personnel and equipment, rescue missions, and heavy duty marine work. Its size and layout support efficient performance under pressure.

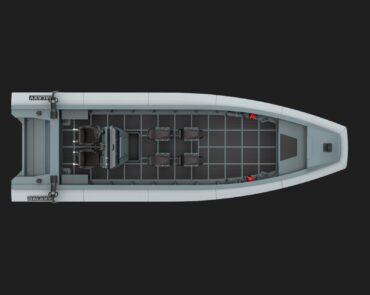

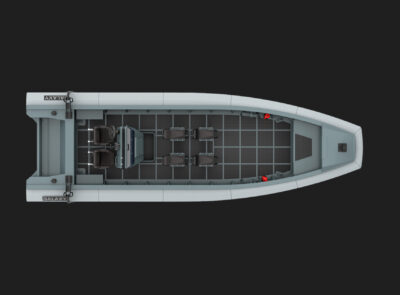

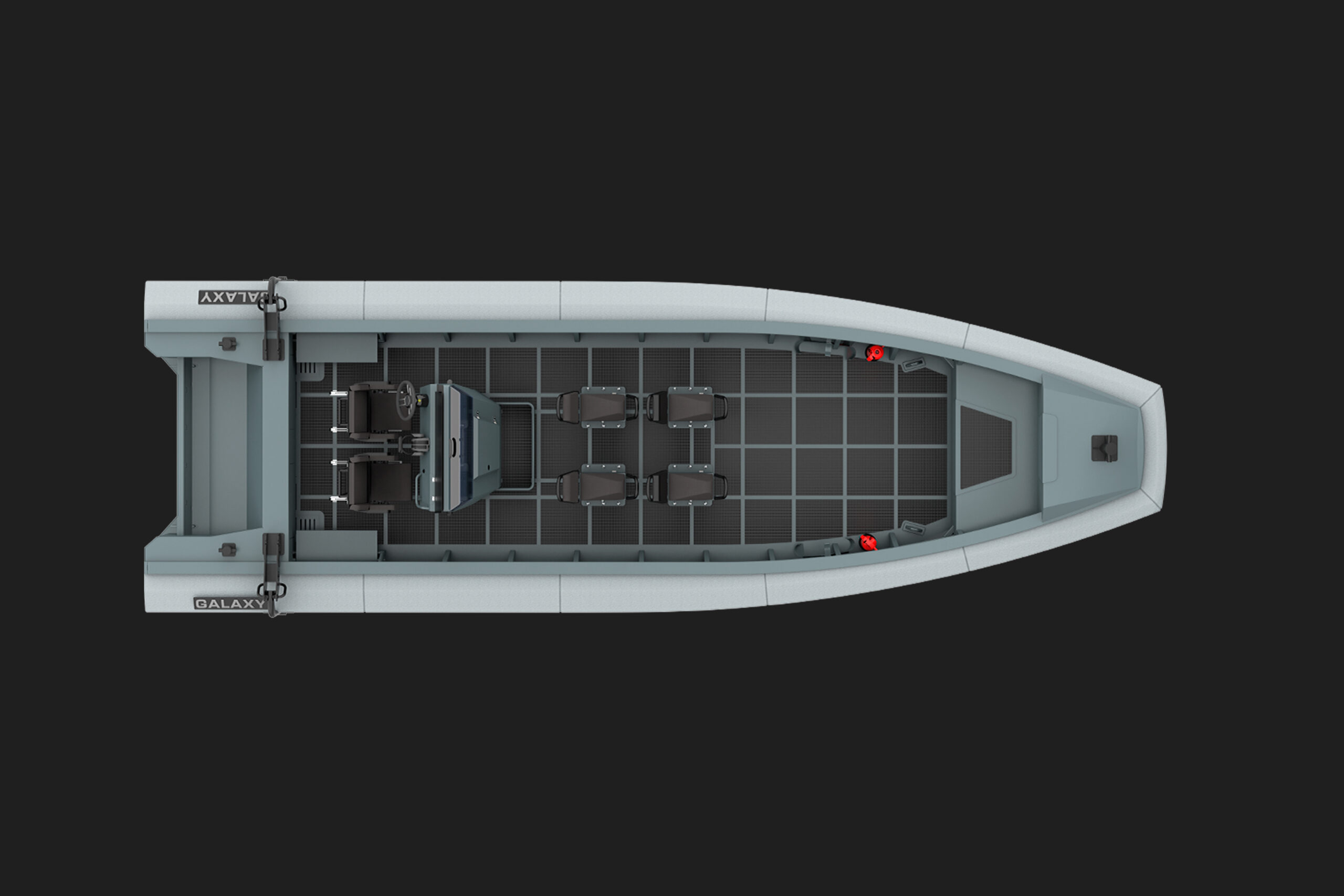

The welded aluminum hull with a reinforced D-collar system ensures strength and durability in rough conditions. The construction reduces maintenance and increases service life.

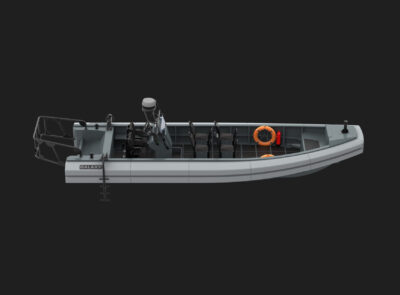

At 9.6 meters long, the Trident T10 supports powerful engines and heavy load requirements. It delivers stable handling and responsive behaviour even with full operational load.

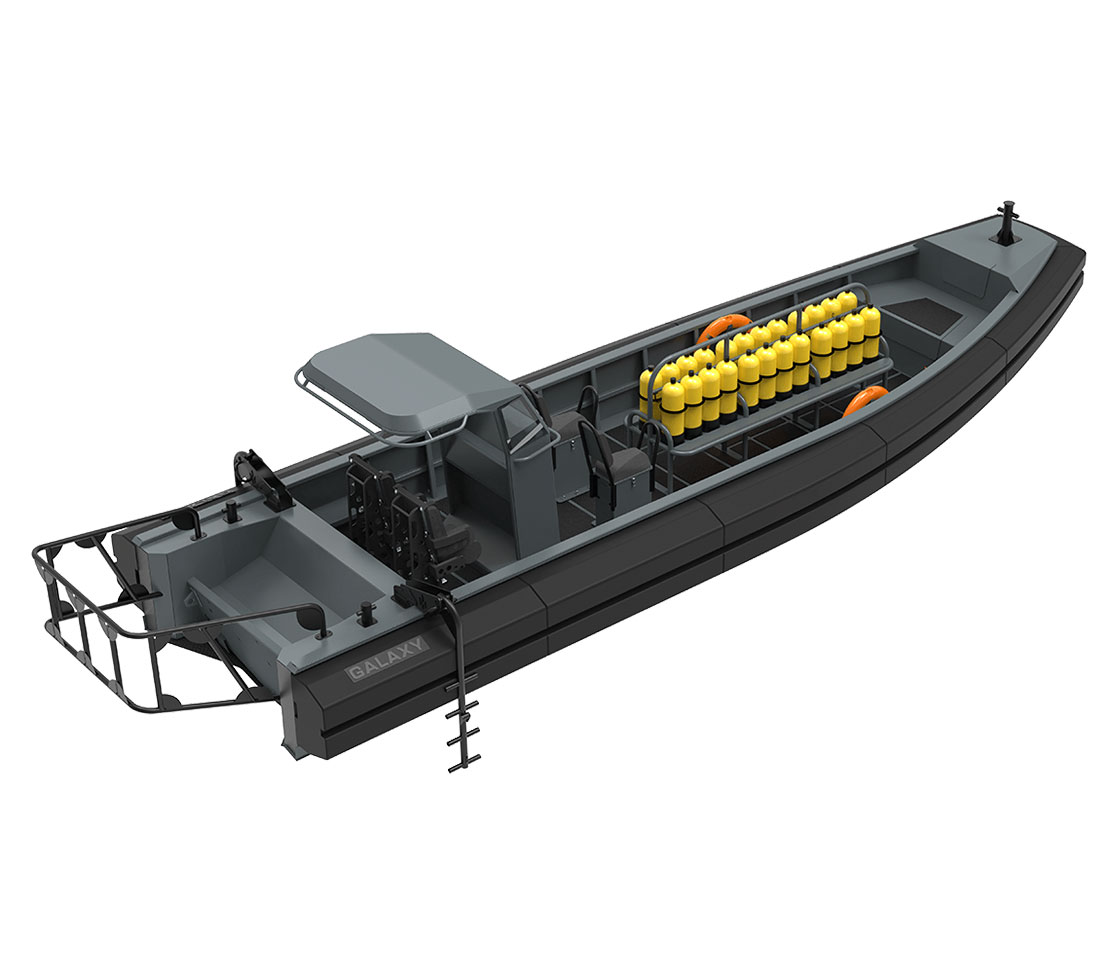

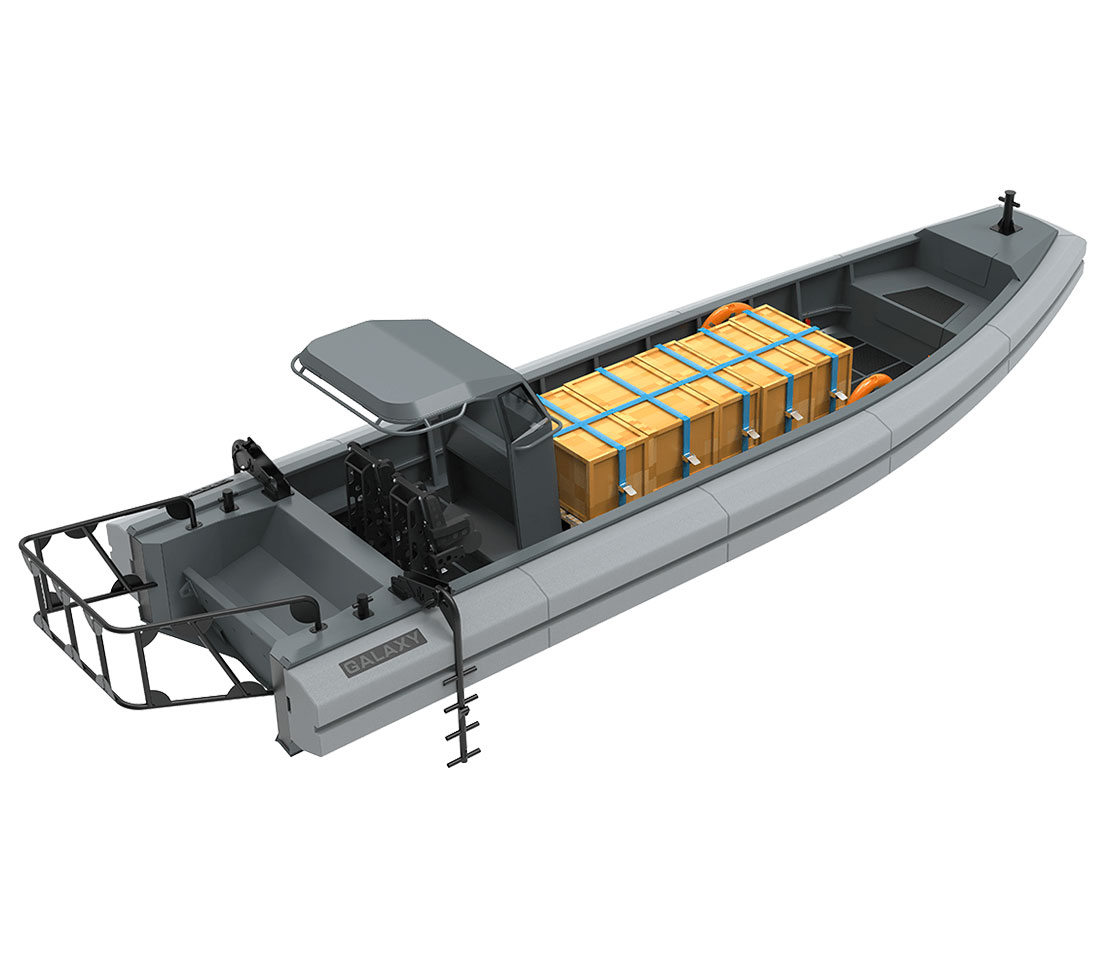

With configurable deck fittings and space for specialized gear, this workboat meets the needs of professional operators who demand reliability and performance in offshore environments.
The GALAXY concept allows you to customize each boat to meet your specific requirements and tasks. This personalized approach ensures that every client receives a boat perfectly suited to their needs. A wide range of equipment is available for your requirements, along with custom engineering solutions tailored to your needs.
| Parameter | Value |
|---|---|
| Model | TRIDENT T10 |
| Total length | 960 cm / 31′ 6” |
| Cockpit length | 650 cm / 21′ 4” |
| Overall width | 320 cm / 10′ 6” |
| Cockpit width | 220 cm / 7′ 3” |
| Tube diameter max | 62 cm / 24,4” |
| Weight of the vessel | 2000 kg / 4400 lbs |
| Cargo carrying capacity | 2200 kg / 4840 lbs |
| Passenger capacity | 16 |
| Number of compartments in tubes | 7 / – |
| Recommended engine power | 600 HP / 441,3 kW |
| Maximum engine power | 700 HP / 514,8 kW |
| Maximum motor weight | 800 kg / 1760 lbs |
| Motor leg length | 2×30″ |
| Fuel tank capacity | 1000 L |
| Roughness on the trine / middle | 21° / 28° |
| Material of tubes | TPU Polyurethane coated foam |
| Hull material | Aluminum hull RIB |
| Aluminum sheet thickness (side / bottom) | 6 mm |
| Boat design category | C / B |
| Hull length | 9.60 m |
| Beam | 3.20 m |
| Draft | - |
| Transform height | - |
| Hull material | Aluminum hull RIB |
| Hull thickness | 6 mm |
| Boat weight | 2000 kg |
| Max weight capacity | 2200 kg |
| Engine | 700 hp |
| Fuel tanks | 1000 L |
| Livewell | - |
| Persons | 16 |
| Road storage | - |
