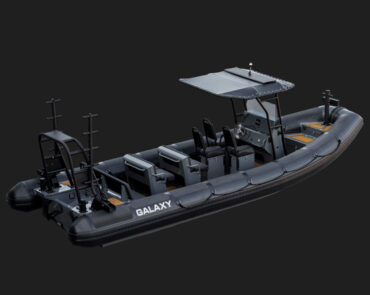

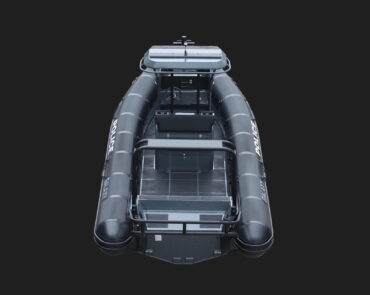

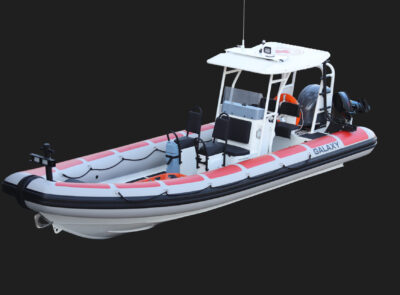

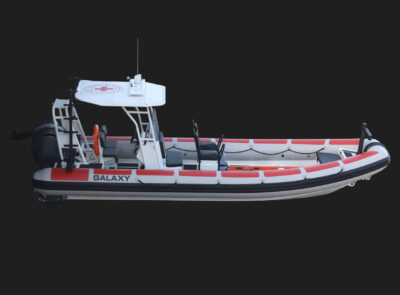

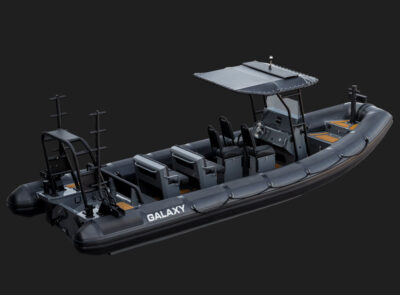

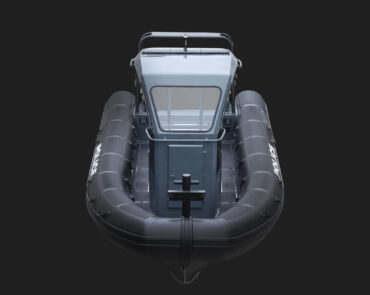

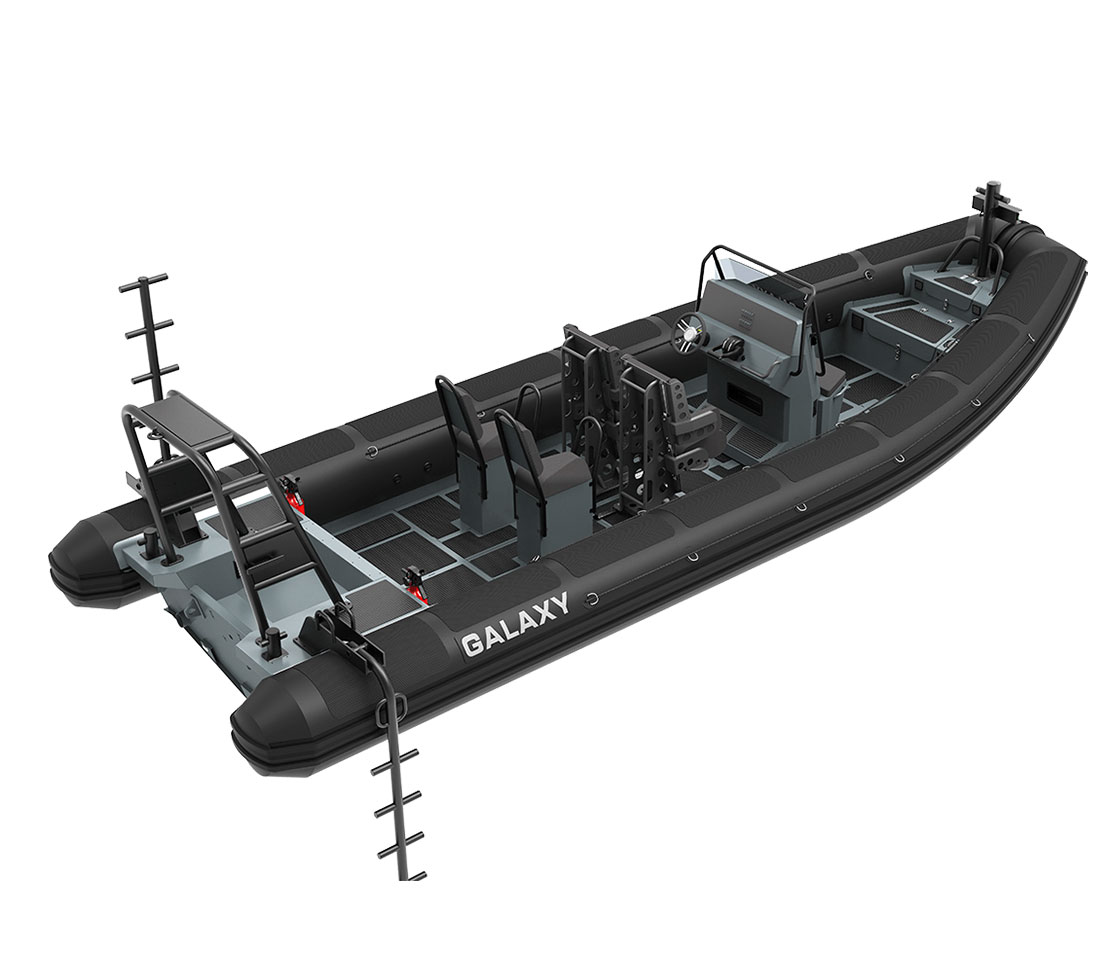

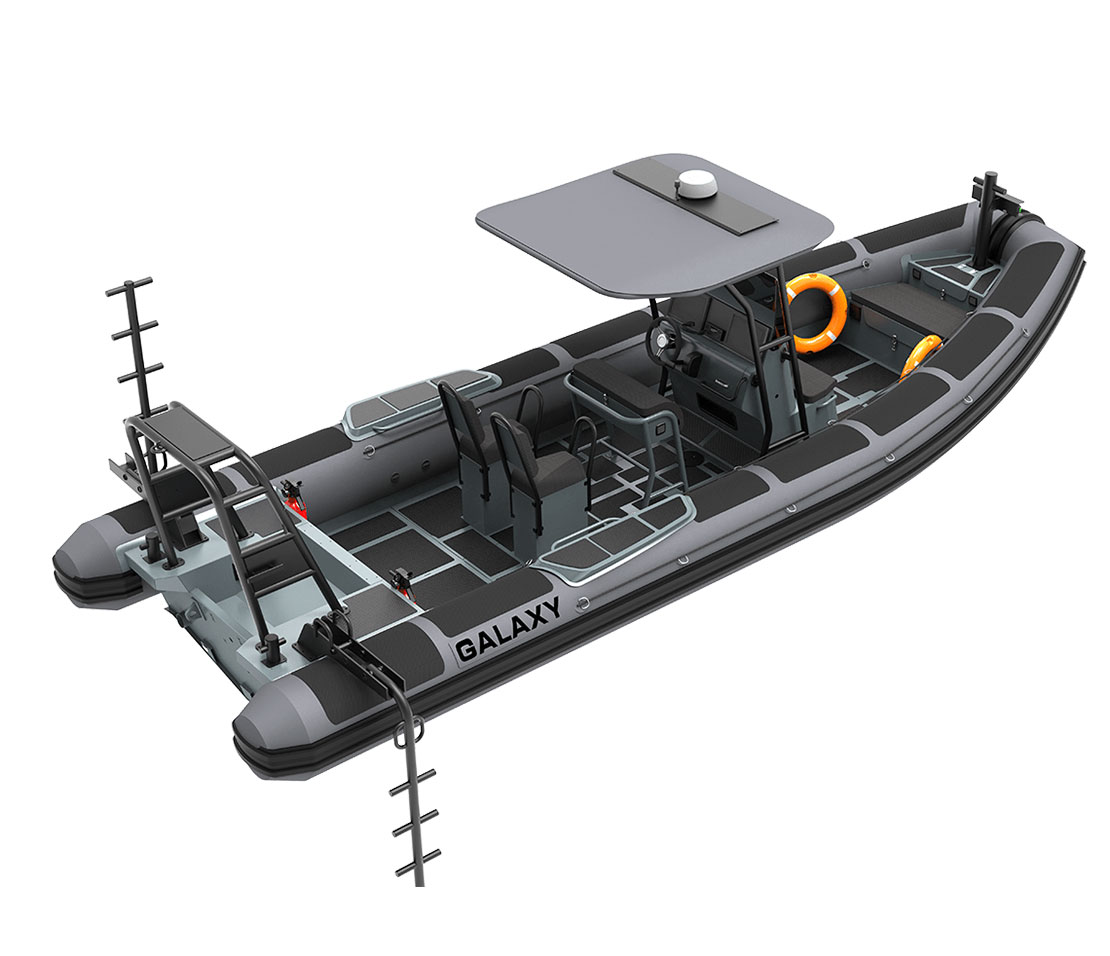

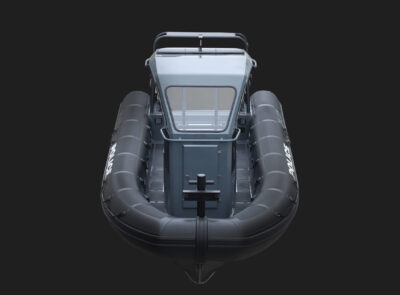

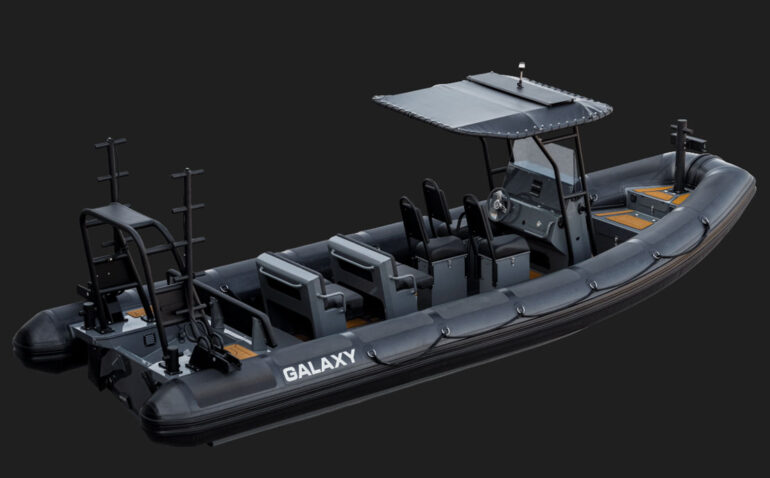

GALAXY Pilot – P8

DESCRIPTION OF THE BOAT

The GALAXY Pilot P8 is a well-balanced professional vessel designed for demanding daily operation. It is suitable for intensive use in various marine conditions.

This model performs reliably on inland waters and in coastal areas. Its size provides a strong balance between stability and maneuverability.

The welded aluminum hull ensures durability and long service life. The construction supports safe operation and reduced maintenance.

The layout offers practical working space for the crew. It allows efficient movement and task execution during operations.

Whether used for patrol, commercial duties, or professional services, the Pilot P8 delivers consistent performance in challenging environments.

The GALAXY concept allows you to customize each boat to meet your specific requirements and tasks. This personalized approach ensures that every client receives a boat perfectly suited to their needs. A wide range of equipment is available for your requirements, along with custom engineering solutions tailored to your needs.

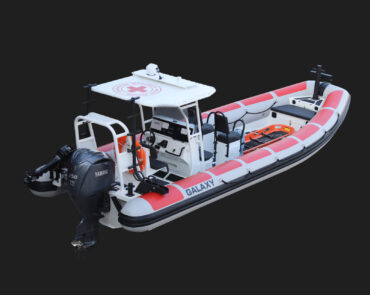

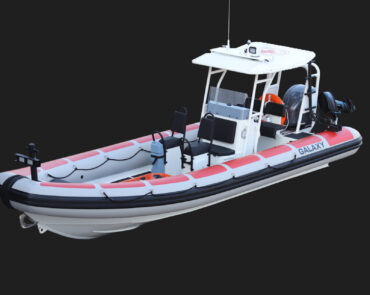

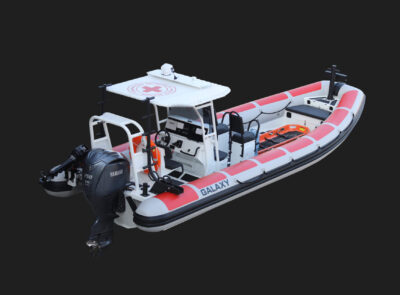

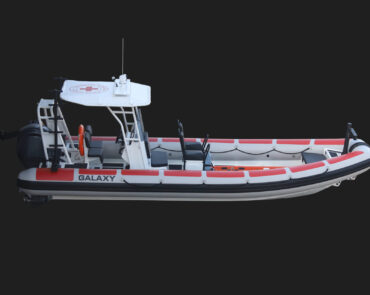

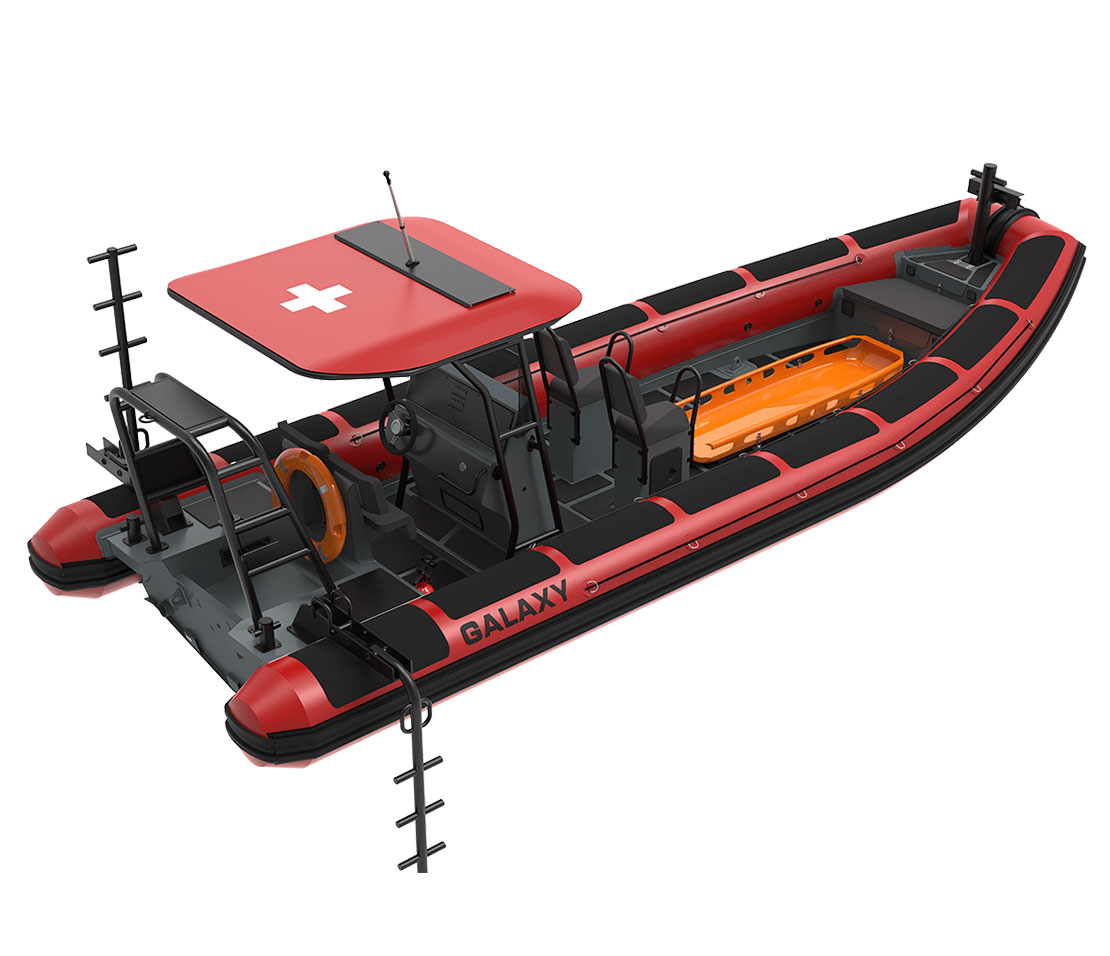

RESCUE

PROFESSIONAL GRADE BOAT

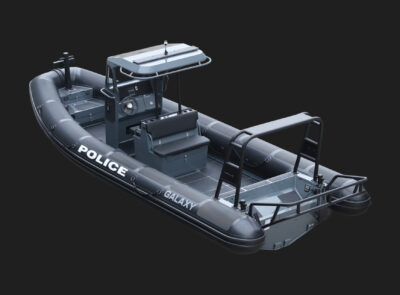

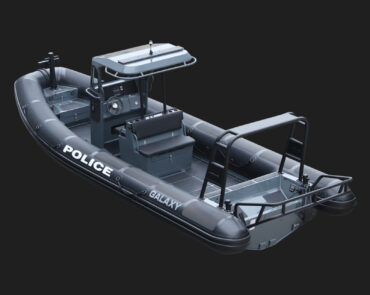

PATROL

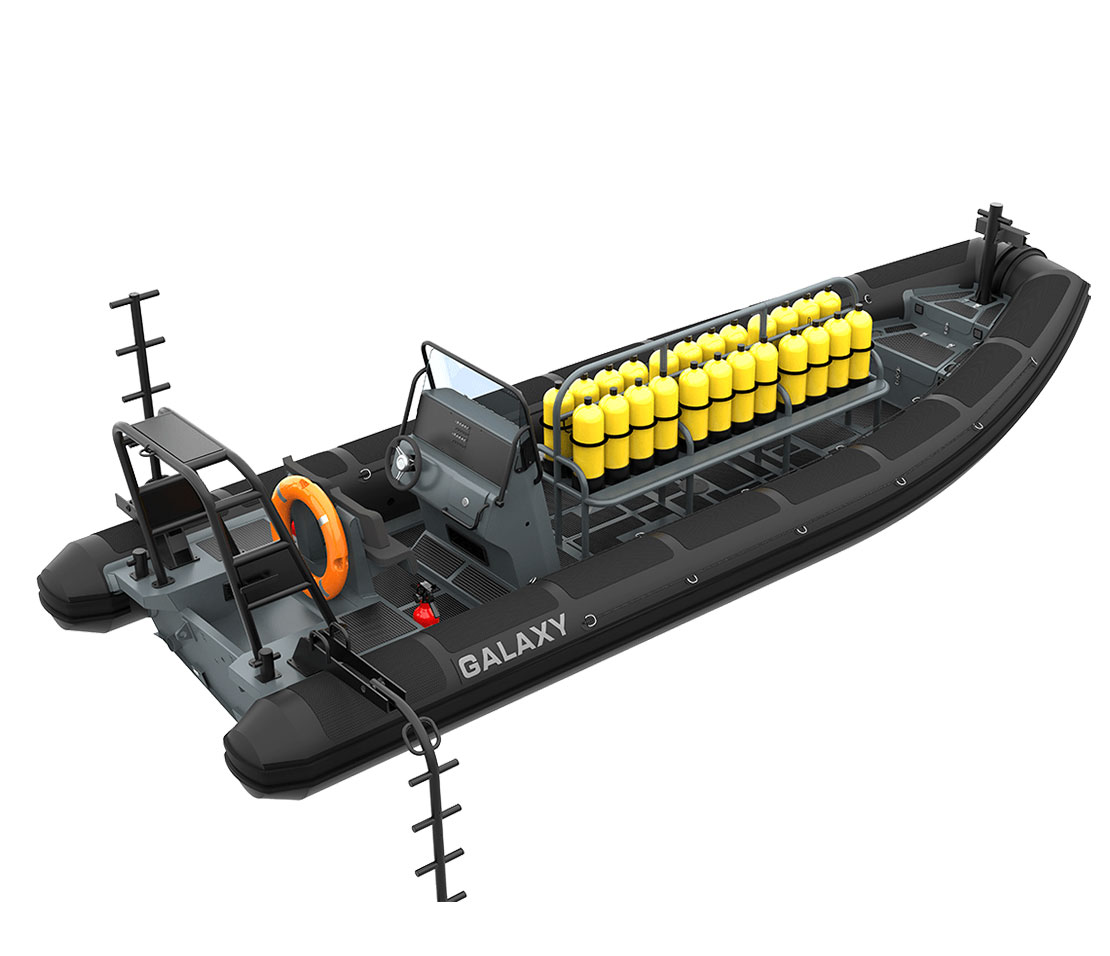

DIVING

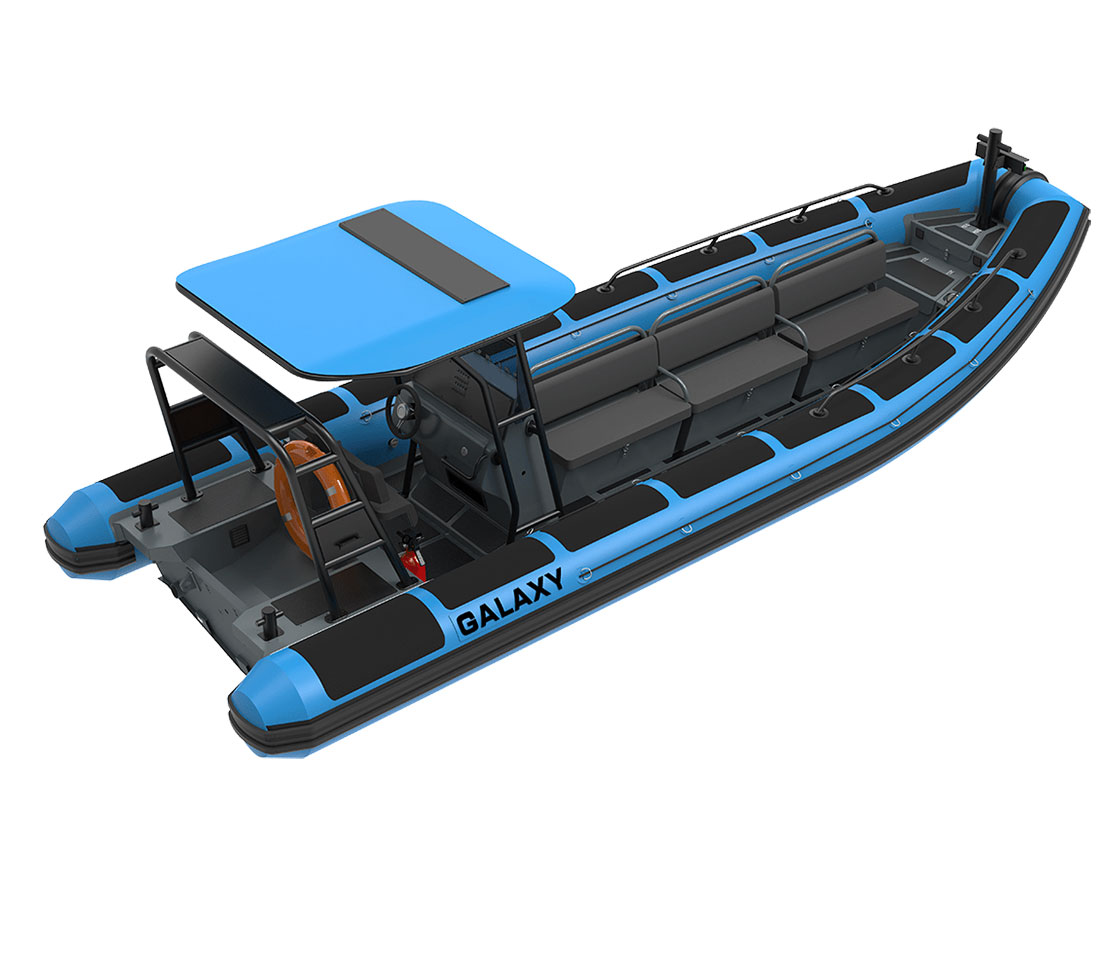

TOURISM

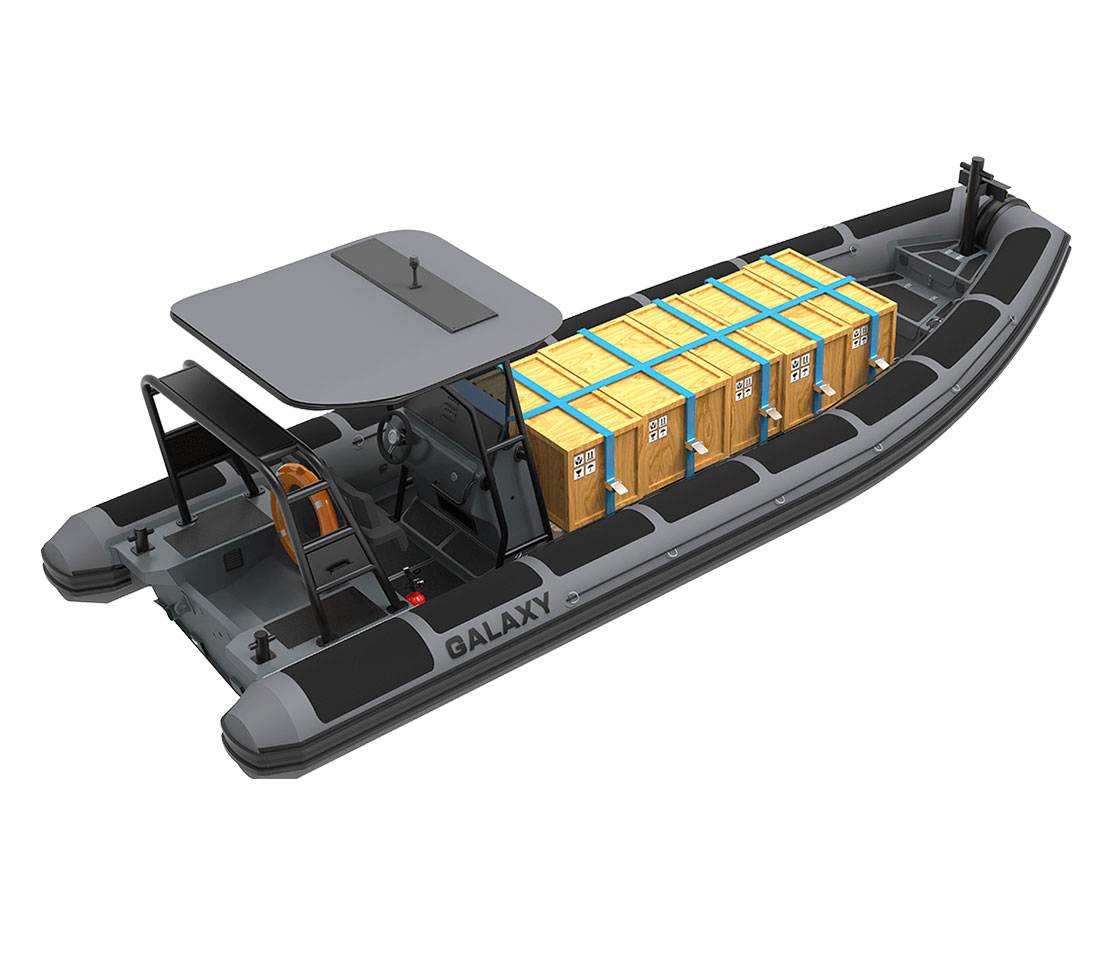

CARGO



SPECIFICATION

Detailed information on the key specifications and capabilities of this boat. Review the technical characteristics to understand the tasks and conditions for which this boat is suitable. These specifications define the boat’s performance and reliability.


Parameter Value
Model Pilot – P8
Total length 780 cm / 25′ 7”
Cockpit length 588 cm / 19′ 3”
Overall width 285 cm / 9′ 4”
Cockpit width 160 cm / 5′ 3”
Tube diameter max 60 cm / 23,6”
Weight of the vessel 1120 kg / 2464 lbs
Cargo carrying capacity 2200/1580 kg / 4840/3476 lbs
Passenger capacity 14 / 11
Number of compartments in tubes 5
Recommended engine power 250 HP / 183,9 kW
Maximum engine power 350 HP / 257,4 kW
Maximum motor weight 550 kg / 1210 lbs
Motor leg length 30″ / 2×25″
Fuel tank capacity 300 L
Roughness on the trine / middle 23° / 30°
Material of tubes HYPALON / PVC / TPU
Hull material Aluminum hull RIB
Aluminum sheet thickness (side / bottom) 5 mm
Boat design category C, B
44,040

Price for Standard Features. VAT included

send a request
Specification
Hull length 7.80 m
Beam 2.85 m
Draft-
Transform height-
Hull materialAluminum hull RIB
Hull thickness 5 mm
Boat weight850 kg
Max weight capacity2200 kg
Engine 350 HP
Fuel tanks300 l
Livewell-
Persons14
Road storage -
