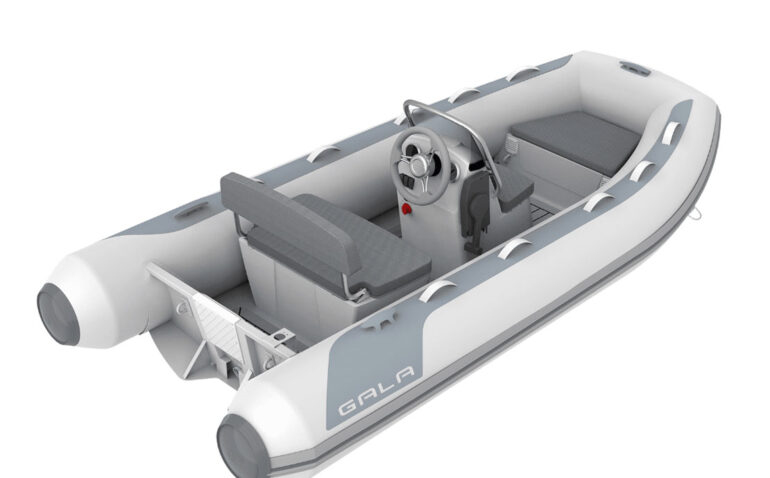

GALA ATLANTIS DELUXE A330L

Overview

ATLANTIS Deluxe A330L PVC tube

We proudly offer the GALA ATLANTIS A330L – a versatile and spacious Deluxe tender with a center console from GALA. If you are looking for a durable and feature-rich center console tender for your yacht, the GALA ATLANTIS A330L is the ideal choice.

GALA ATLANTIS A330L (330 cm long) features:

A steering console and double seat, with an additional seat in front of the console for extra comfort.
A larger cockpit space for more room and convenience.
A standard bow locker with a bow cushion, large access door, and ample storage capacity.
Impressive passenger and carrying capacities, along with a high power rating.
Unbeatable performance and a remarkably dry ride with the innovative GALA TABS.
Expertly equipped with original GALA fittings that provide an elegant yet practical design.

Every GALA ATLANTIS A330L boat is available with either VALMEX or HYPALON tubing, in a variety of colors.

Standard Features

Medium-V, powder-coated aluminum hull with «GALA TABS», hidden reinforced transom brackets and keel protector
Flat cockpit decks with large under-deck water collector for dry cruising
Steering console with windshield and railing: C-01 on A300L, C-02 with front seat and seatback on A330L
Double seat S-01 w/ folding back & storage
Steering system with wheel and cable
Spacious bow locker with access hatch
4 lifting eyes and 3 towing bow eyes
Bow handle and two rear splash guards
GALA bow cleat and 8/10 grab handles
Soft curved 3-chamber VALMEX / Hypalon buoyancy tube with rounded bow
Overpressure valve
Tough rubbing strake with splash guard
One-way drain valve with pull-up handle
Two paddles, high-efficiency foot pump
Repair kit and manual

Optional Equipment

Bow step plate with cleat and soft seat back
Electric package (includes navigation lights, bilge pump, horn, battery switch, etc)
Two rear GALA cleats
Overall cover
Console cover
SEADECK upgrade
SILVERTEX upholstery upgrade
Bow step plate
Tube protector package
Seat cover

SPECIFICATIONS

Length overall	330 cm / 10’10”
Length inside	244 cm / 8’0″
Width overall	170 cm / 5’7″
Width inside	82 cm / 2’8″
Tube Diameter	44 cm / 17″
Bare boat weight	126 kg / 277 lbs
Loading capacity	500 kg / 1100 lbs
Passenger capacity	5
Number of chambers	3
Engine recommended	20 HP
Engine MAX	30 HP
Engine weight MAX	70 kg / 154 lbs
Engine shaft length	15″ (short)
Aluminum hull thickness	3 mm / 1/8″
Boat design category	C

Specification

Length overall	3,3 m
Beam	1,7 m
Deadrise at transom	-
Draft	-
Transform height	382 mm (S)
Hull material	Aluminum
Hull thickness	3 mm / 1/8″
Boat weight	126 kg
Max weight capacity	500 kg
Engine	30 HP
Fuel tanks	-
Livewell	-
Persons	5
Road storage	-
